Description
Brand - DODGE
Item Number - 421258 DODGE - BRG-UN2-315
Category - UNISPHERE II Bearing Insert With Seal - Inch
Bearing - 22220
Shaft Size (inch) - 3.9375
Part Name - BRG-UN2-315
Approximate Weight (lbs) - 12.4

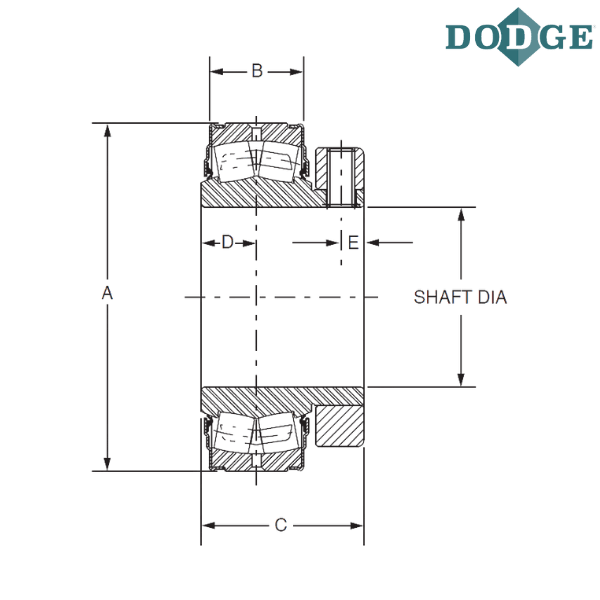

Overall Length (A) inch - 7.0866
B (inch) - 1.86
Thickness (C) inch - 3.33
D (inch) - 1.09
E (inch) - 0.51
Notes :
UN2 - UNISPHERE II

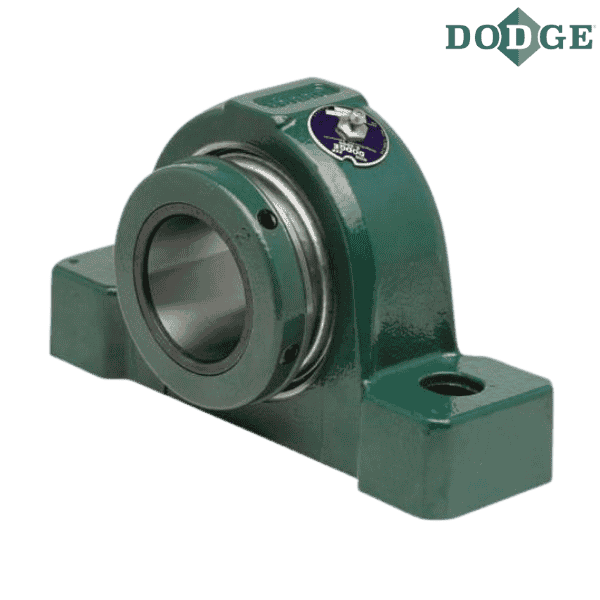

** Images are for representation purposes only
