Description
Brand - DODGE
Item Number - 421276 DODGE - BRG22234C3
Category - USAF 22200 Spherical Roller Bearings
Description - BRG22234C3
Housing - 234
Bearing Number - 22234
Approximate Weight (lbs) - 58

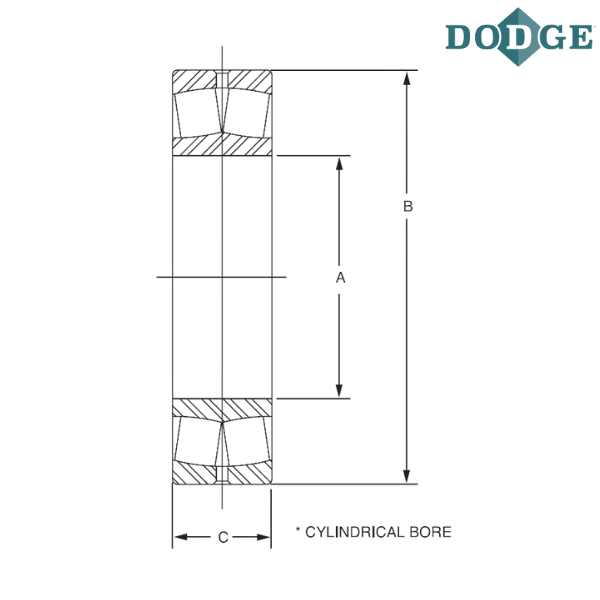

Bore Diameter (A) inch - 6.6929
Bore Diameter (A) mm - 170
Outer Diameter (B) inch - 12.2047
Outer Diameter (B) mm - 310
C (inch) - 3.3858
C (mm) - 86
Notes :
BRG - Roller Bearing
222 - 22200 Series
C3 - Bearing clearance
** Images are for representation purposes only
