Description
Brand - DODGE
Item Number - 421364 DODGE - BRG-UN2-050
Category - UNISPHERE II Bearing Insert With Seal - Metric
Bearing - 22210
Shaft Size (mm) - 50
Part Name - BRG-UN2-050
Approximate Weight (kg) - 0.75

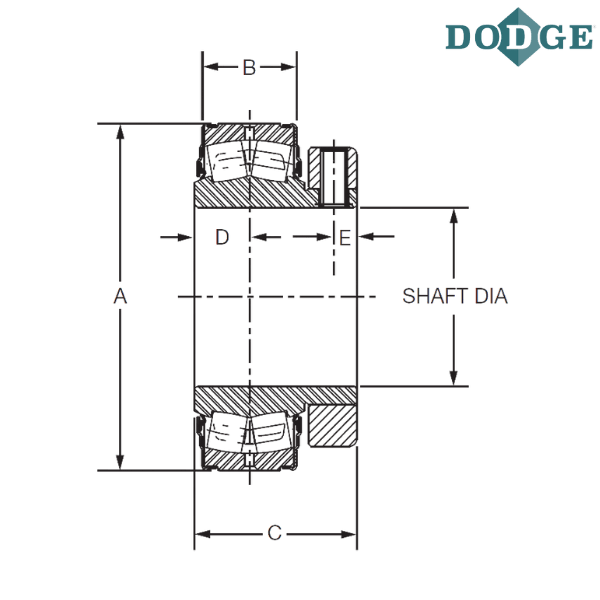

Overall Length (A) mm - 90
B (mm) - 24
Thickness (C) mm - 48
D (mm) - 15.1
E (mm) - 8.05
Notes :
UN2 - UNISPHERE II

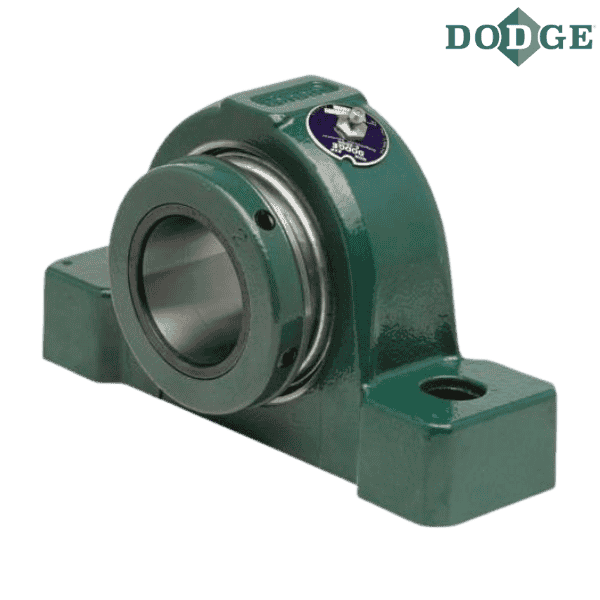

** Images are for representation purposes only
