Description
Brand - DODGE
Item Number - 421372 DODGE - BRG-UN2-090
Category - UNISPHERE II Bearing Insert With Seal - Metric
Bearing - 22218
Shaft Size (mm) - 90
Part Name - BRG-UN2-090
Approximate Weight (kg) - 3.9

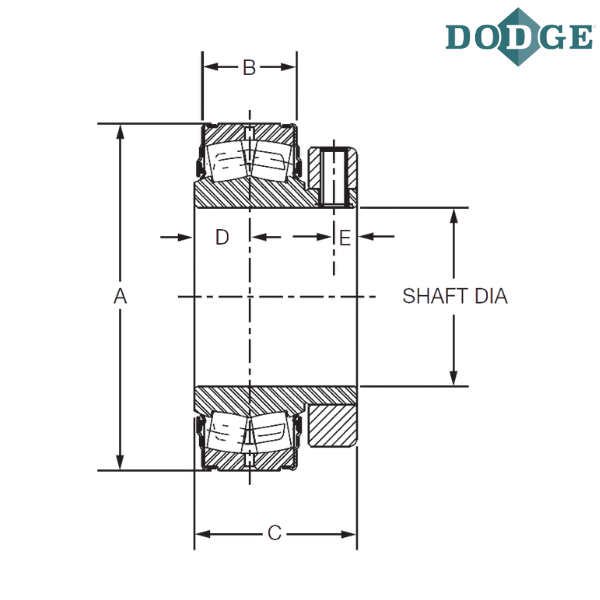

Overall Length (A) mm - 160
B (mm) - 41.3
Thickness (C) mm - 73
D (mm) - 24.1
E (mm) - 11.2
Notes :
UN2 - UNISPHERE II
** Images are for representation purposes only
