Description
Brand - DODGE
Item Number - 422003 DODGE - BRG22216K.C3
Category - USAF 22200K and 23000K Spherical Roller Bearings
Description - BRG22216K.C3
Shaft Size (S-1) inch - 2.6875, 2.75
Housing - 516
Bearing Number - 22216K
Approximate Weight (lbs) - 4.4

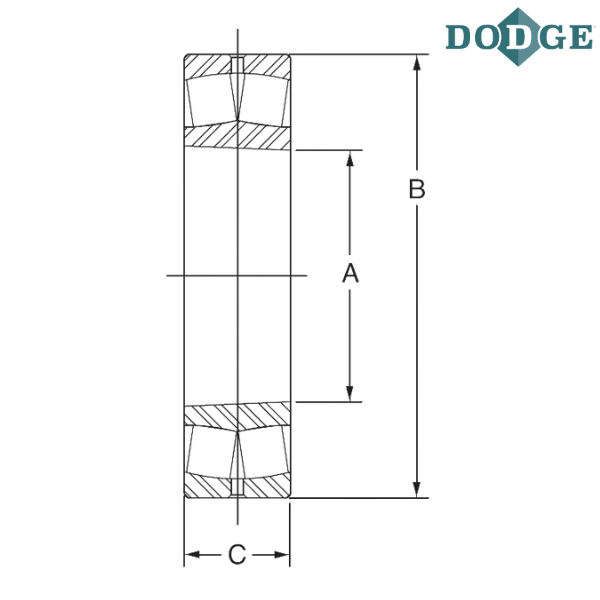

Inner Diameter (A) inch - 3.1496
Inner Diameter (A) mm - 80
Outer Diameter (B) inch - 5.5188
Outer Diameter (B) mm - 140
Width (C) inch - 1.2992
Width (C) mm - 33
Notes :
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
