Description
Brand - DODGE
Item Number - 422009 DODGE - BRG22220K.C3
Category - USAF 22200K and 23000K Spherical Roller Bearings
Description - BRG22220K.C3
Shaft Size (S-1) inch - 3.4375, 3.5
Housing - 520
Bearing Number - 22220K
Approximate Weight (lbs) - 10.4

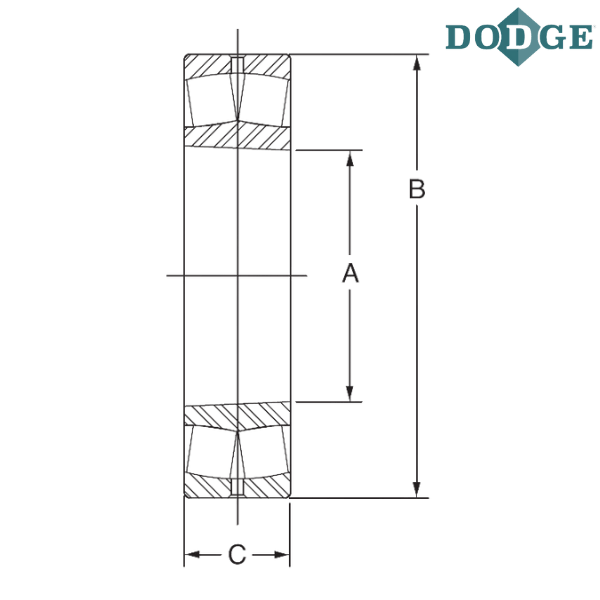

Inner Diameter (A) inch - 3.937
Inner Diameter (A) mm - 100
Outer Diameter (B) inch - 7.0866
Outer Diameter (B) mm - 180
Width (C) inch - 1.811
Width (C) mm - 46
Notes :
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
