Description
Brand - DODGE
Item Number - 422015 DODGE - BRG22226K.C3
Category - USAF 22200K and 23000K Spherical Roller Bearings
Description - BRG22226K.C3
Shaft Size (S-1) inch - 4.4375, 4.5
Housing - 526
Bearing Number - 22226K
Approximate Weight (lbs) - 23.4

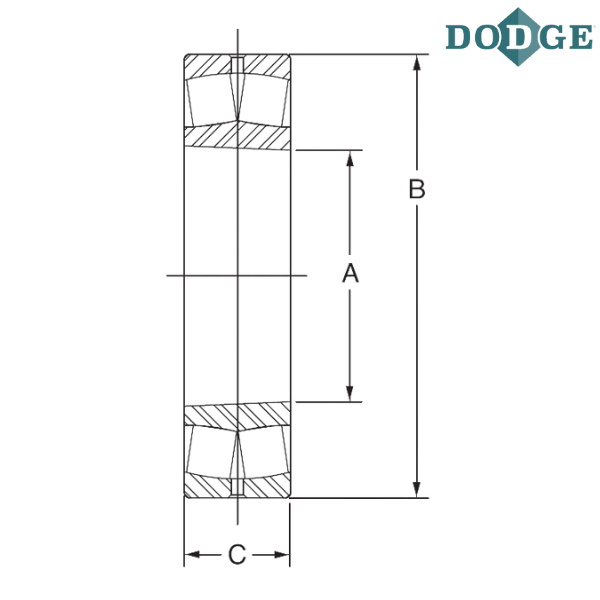

Inner Diameter (A) inch - 5.1181
Inner Diameter (A) mm - 130
Outer Diameter (B) inch - 9.0551
Outer Diameter (B) mm - 230
Width (C) inch - 2.5197
Width (C) mm - 64
Notes :
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
