Description
Brand - DODGE
Item Number - 422019 DODGE - BRG22230K.C3
Category - USAF 22200K and 23000K Spherical Roller Bearings
Description - BRG22230K.C3
Shaft Size (S-1) inch - 5.1875
Housing - 530
Bearing Number - 22230K
Approximate Weight (lbs) - 37.5

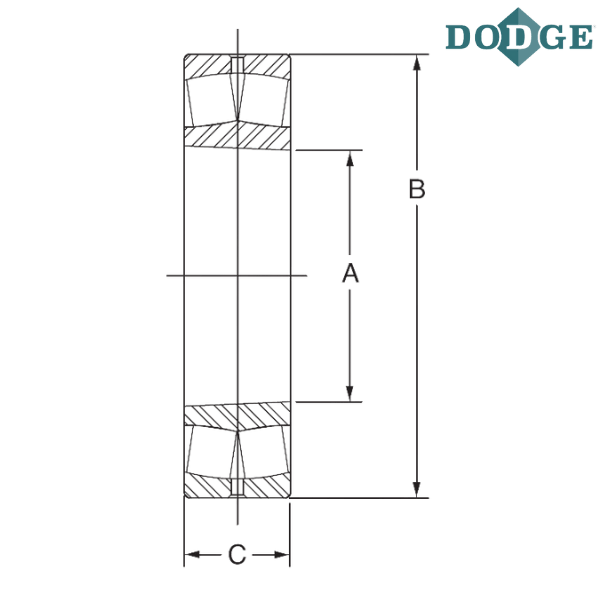

Inner Diameter (A) inch - 5.9055
Inner Diameter (A) mm - 150
Outer Diameter (B) inch - 10.6299
Outer Diameter (B) mm - 270
Width (C) inch - 2.874
Width (C) mm - 73
Notes :
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
