Description
Brand - DODGE
Item Number - 422021 DODGE - BRG22232K.C3
Category - USAF 22200K and 23000K Spherical Roller Bearings
Description - BRG22232K.C3
Shaft Size (S-1) inch - 5.4375, 5.5
Housing - 532
Bearing Number - 22232K
Approximate Weight (lbs) - 48.1

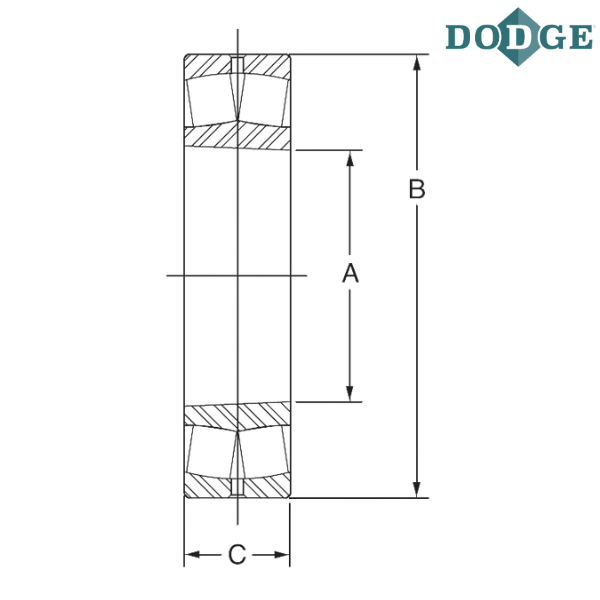

Inner Diameter (A) inch - 6.2992
Inner Diameter (A) mm - 160
Outer Diameter (B) inch - 11.4173
Outer Diameter (B) mm - 290
Width (C) inch - 3.1496
Width (C) mm - 80
Notes :
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
