Description
Brand - DODGE
Item Number - 422023 DODGE - BRG22234K.C3
Category - USAF 22200K and 23000K Spherical Roller Bearings
Description - BRG22234K.C3
Shaft Size (S-1) inch - 5.9375, 6.0
Housing - 534
Bearing Number - 22234K
Approximate Weight (lbs) - 58

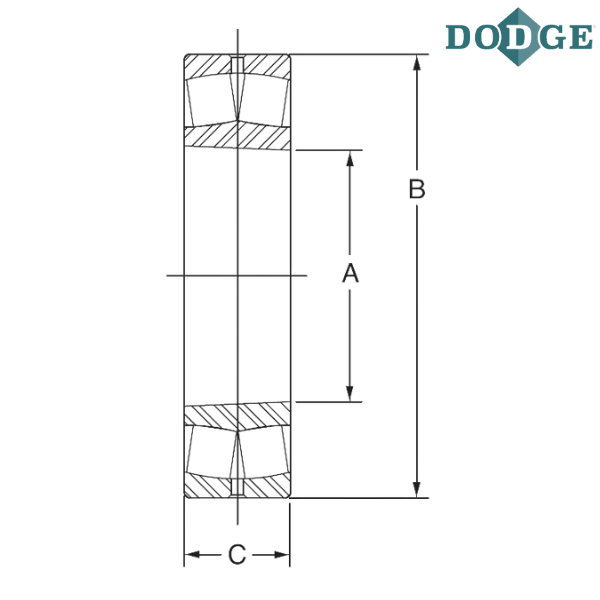

Inner Diameter (A) inch - 6.6929
Inner Diameter (A) mm - 170
Outer Diameter (B) inch - 12.2047
Outer Diameter (B) mm - 310
Width (C) inch - 3.3858
Width (C) mm - 86
Notes :
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
