Description
Brand - DODGE
Item Number - 422025 DODGE - BRG22236K.C3
Category - USAF 22200K and 23000K Spherical Roller Bearings
Description - BRG22236K.C3
Shaft Size (S-1) inch - 6.4375, 6.5
Housing - 536
Bearing Number - 22236K
Approximate Weight (lbs) - 60.8

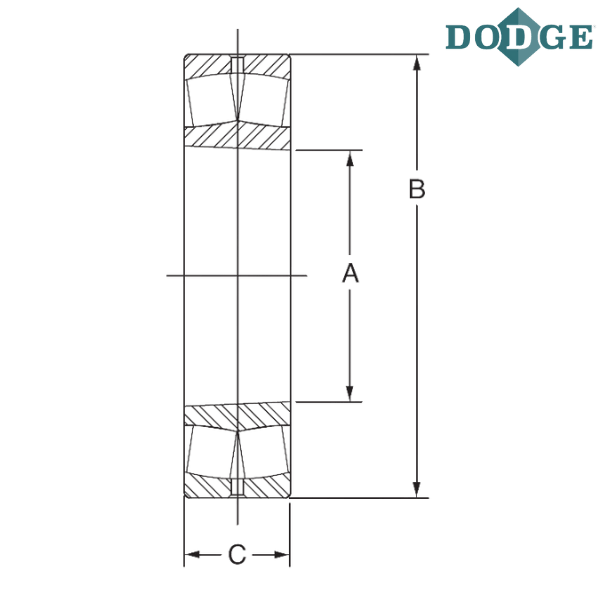

Inner Diameter (A) inch - 7.0866
Inner Diameter (A) mm - 180
Outer Diameter (B) inch - 12.5984
Outer Diameter (B) mm - 320
Width (C) inch - 3.3858
Width (C) mm - 86
Notes :
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
