Description
Brand - DODGE
Item Number - 422027 DODGE - BRG22238K.C3
Category - USAF 22200K and 23000K Spherical Roller Bearings
Description - BRG22238K.C3
Shaft Size (S-1) inch - 6.9375, 7.0
Housing - 538
Bearing Number - 22238K
Approximate Weight (lbs) - 78.9

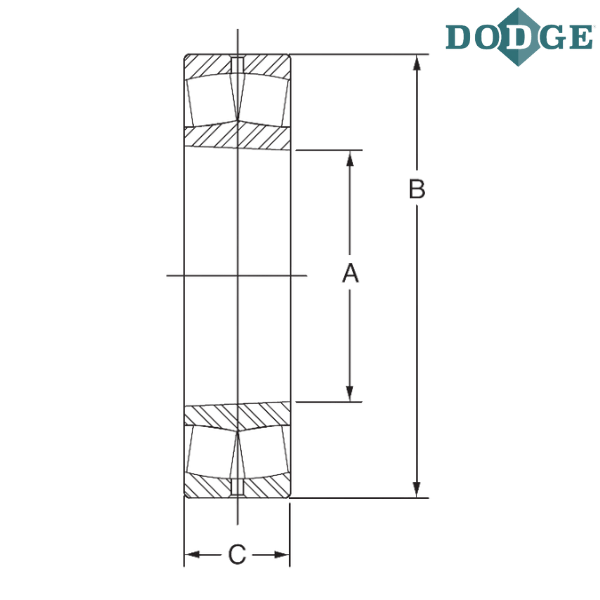

Inner Diameter (A) inch - 7.4803
Inner Diameter (A) mm - 190
Outer Diameter (B) inch - 13.3858
Outer Diameter (B) mm - 340
Width (C) inch - 3.622
Width (C) mm - 92
Notes :
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
