Description
Brand - DODGE
Item Number - 422030 DODGE - BRG23056K.C3
Category - USAF 22200K and 23000K Spherical Roller Bearings
Description - BRG23056K.C3
Shaft Size (S-1) inch - 9.9375, 10.0, 10.4375, 10.5
Housings - 056, 056L
Bearing Number - 23056K
Approximate Weight (lbs) - 114

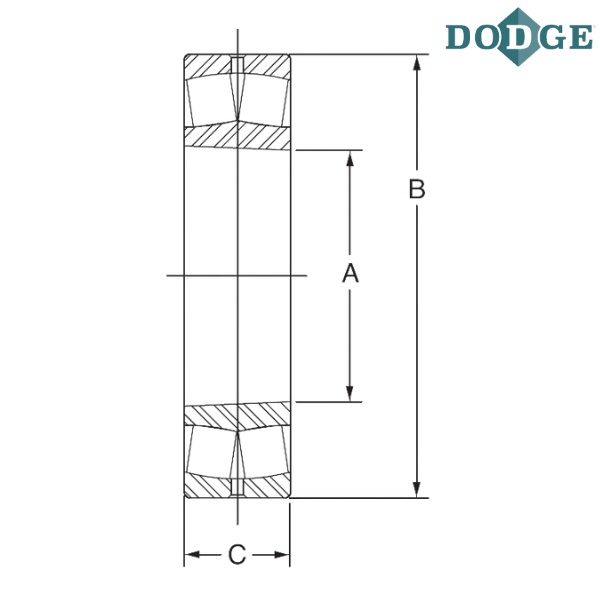

Inner Diameter (A) inch - 11.0236
Inner Diameter (A) mm - 280
Outer Diameter (B) inch - 16.5354
Outer Diameter (B) mm - 430
Width (C) inch - 4.1732
Width (C) mm - 106
Notes :
BRG - Roller Bearing
230 - 23000 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance

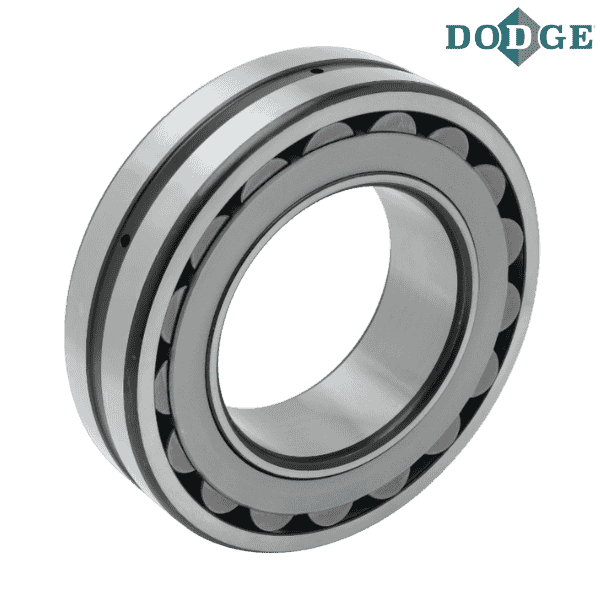

** Images are for representation purposes only
