Description
Brand - DODGE
Item Number - 422134 DODGE - BRG22209K.C3
Category - USAF 22200K and 23000K Spherical Roller Bearings
Description - BRG22209K.C3
Shaft Size (S-1) inch - 1.4375
Housing - 509
Bearing Number - 22209K
Approximate Weight (lbs) - 1.2

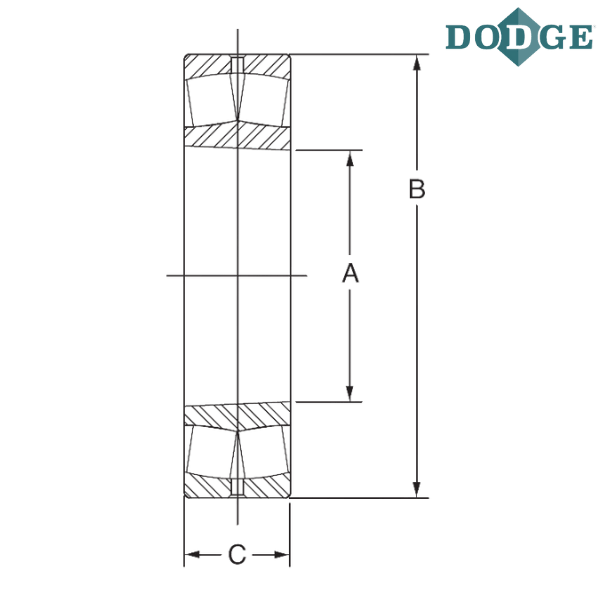

Inner Diameter (A) inch - 1.7717
Inner Diameter (A) mm - 45
Outer Diameter (B) inch - 3.3465
Outer Diameter (B) mm - 85
Width (C) inch - 0.9055
Width (C) mm - 23
Notes :
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance

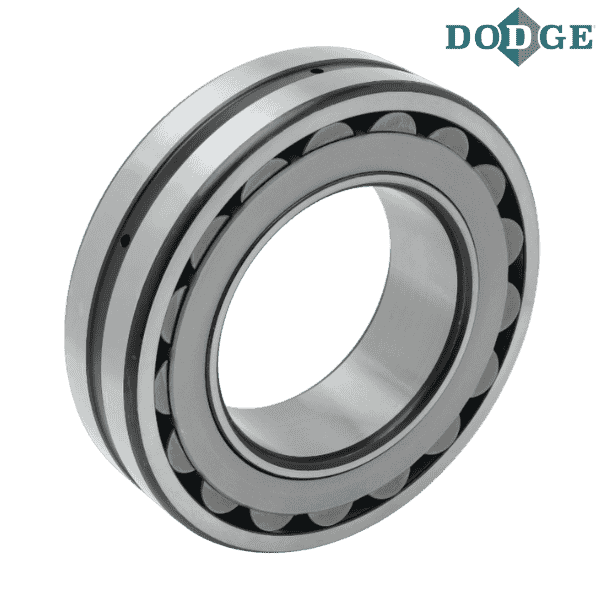

** Images are for representation purposes only
