Description
Brand - DODGE
Item Number - 422140 DODGE - BRG22324KC3
Category - USAF 22300K Spherical Roller Bearings
Description - BRG22324KC3
Shaft Size (inch) - 4.1875
Housing - 624
Bearing Number - 22324K
Approximate Weight (lbs) - 48.3

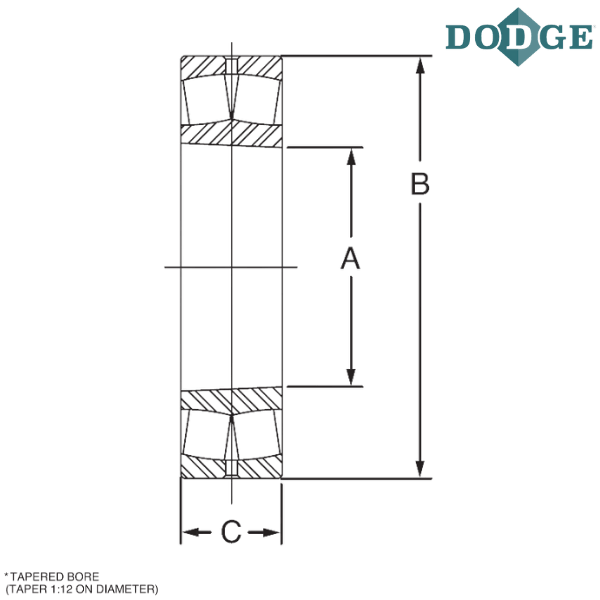

A (inch) - 4.7244
A (mm) - 120
Outer Diameter (B) inch - 10.2362
Outer Diameter (B) mm - 260
C (inch) - 3.3858
C (mm) - 86
Notes :
BRG - Roller Bearing
223 - 22300 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
