422560 DODGE - H4S-056-USAF

Brand - DODGE
Item Number - 422560 DODGE - H4S-056-USAF
Category - USAF 500 Adapter Mount Pillow Block Housing (4-Bolt Through Housing)
Description - H4S-56-USAF
Shaft Size (S-1) inch - 9.9375, 10.0
Approximate Weight (lbs) - 692
Housing - 056

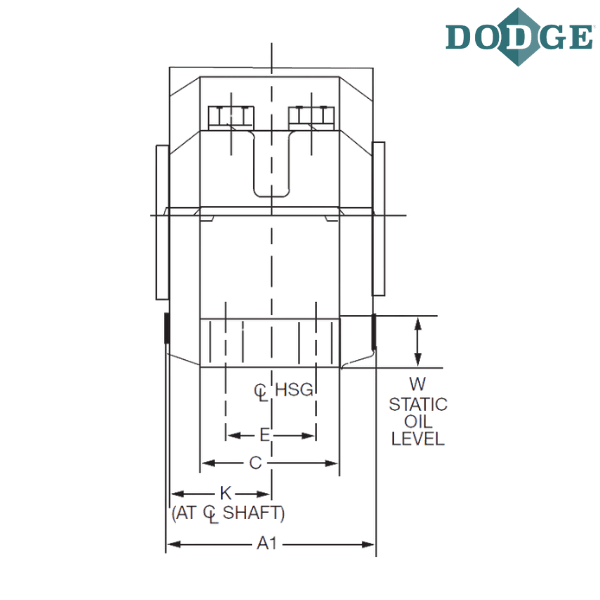

A1 (inch) - 13.66
Overall Length (B) inch - 34.25
C (inch) - 9
Bolt to Bolt Minimum Distance (D min) inch - 26.25
Bolt to Bolt Maximum Distance (D max) inch - 29.5
E (inch) - 5.5
F-Bolt Diameter (inch) - 1.5
H (inch) - 4
Overall Height (J) inch - 20
K (inch) - 6.38
Base to Center Height (M) inch - 9.88
P (inch) - 22.31
Q (inch) - 4
S (inch) - 0
Static Oil Level (W) inch - 2.36

Notes :
H4S - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
0XX - For Adapter Mounted 23000K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)

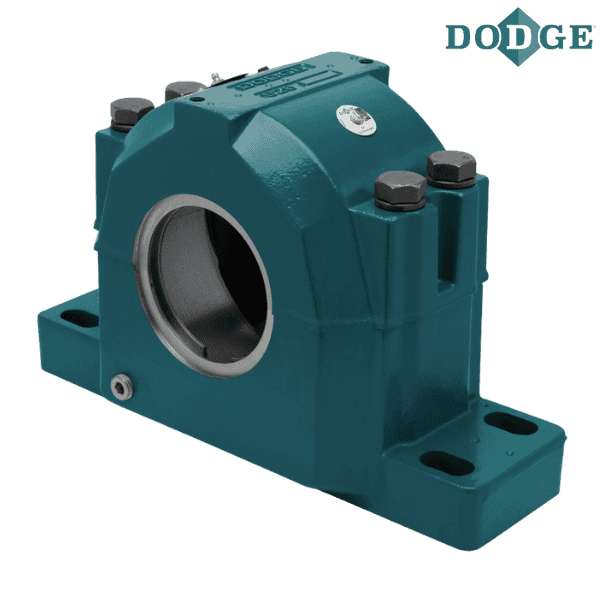

** Images are for representation purposes only
