Description
Brand - DODGE
Item Number - 423100 DODGE - BRG22309KC3
Category - USAF 22300K Spherical Roller Bearings
Description - BRG22309KC3
Shaft Size (inch) - 1.4375
Housing - 609
Bearing Number - 22309K
Approximate Weight (lbs) - 3

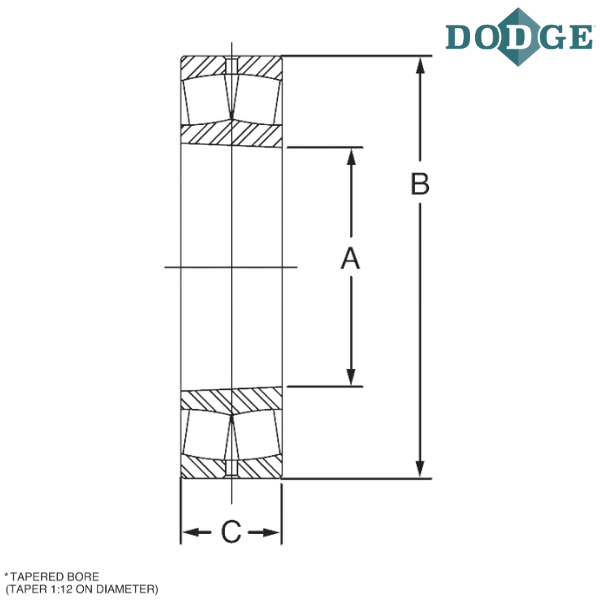

A (inch) - 1.7717
A (mm) - 45
Outer Diameter (B) inch - 3.937
Outer Diameter (B) mm - 100
C (inch) - 1.4171
C (mm) - 36
Notes :
BRG - Roller Bearing
223 - 22300 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance

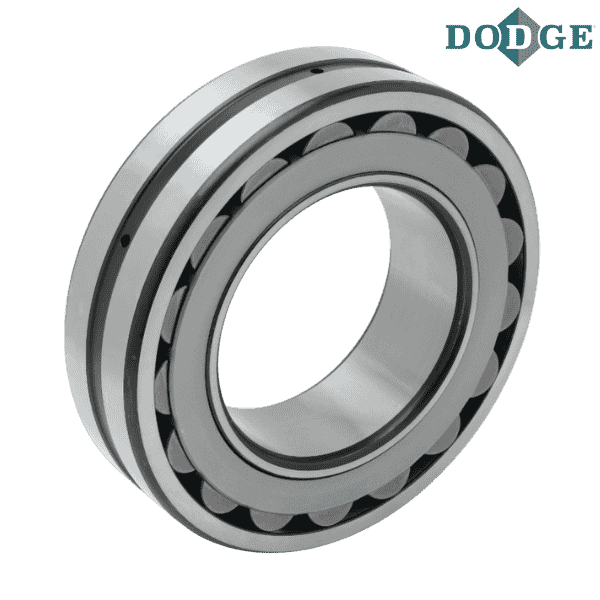

** Images are for representation purposes only
