Description
Brand - DODGE
Item Number - 423104 DODGE - BRG22313KC3
Category - USAF 22300K Spherical Roller Bearings
Description - BRG22313KC3
Shaft Size (inch) - 2.1875
Housing - 613
Bearing Number - 22313K
Approximate Weight (lbs) - 7.8

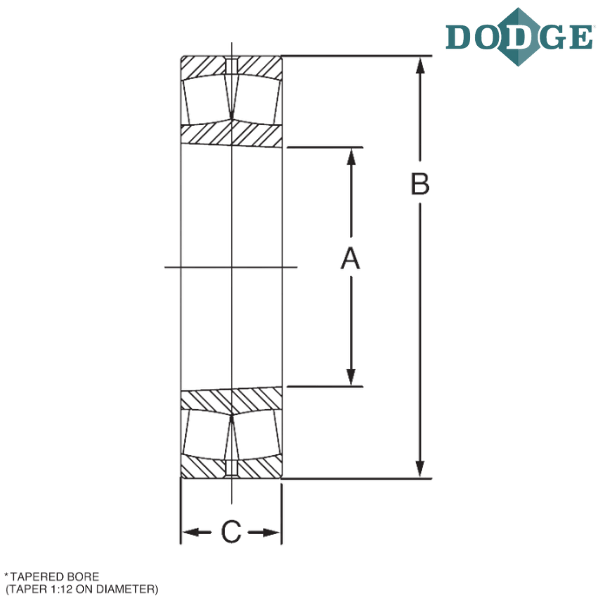

A (inch) - 2.5591
A (mm) - 65
Outer Diameter (B) inch - 5.5118
Outer Diameter (B) mm - 140
C (inch) - 1.8898
C (mm) - 48
Notes :
BRG - Roller Bearing
223 - 22300 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
