Description
Brand - DODGE
Item Number - 423106 DODGE - BRG22315KC3
Category - USAF 22300K Spherical Roller Bearings
Description - BRG22315KC3
Shaft Size (inch) - 2.4375
Housing - 615
Bearing Number - 22315K
Approximate Weight (lbs) - 11.5

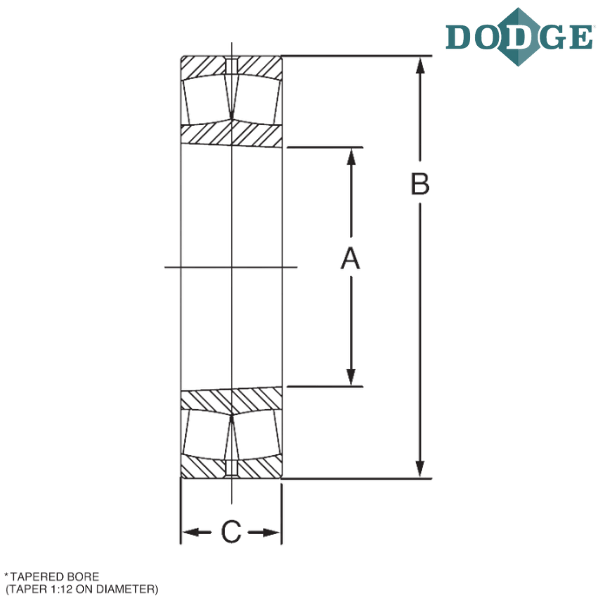

A (inch) - 2.9528
A (mm) - 75
Outer Diameter (B) inch - 6.2992
Outer Diameter (B) mm - 160
C (inch) - 2.1654
C (mm) - 55
Notes :
BRG - Roller Bearing
223 - 22300 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
