Description
Brand - DODGE
Item Number - 423108 DODGE - BRG22317KC3
Category - USAF 22300K Spherical Roller Bearings
Description - BRG22317KC3
Shaft Size (inch) - 2.9375
Housing - 617
Bearing Number - 22317K
Approximate Weight (lbs) - 15.7

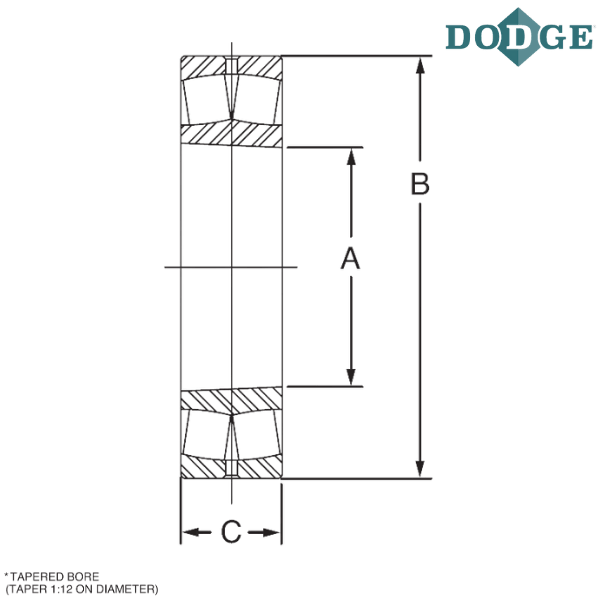

A (inch) - 3.3465
A (mm) - 85
Outer Diameter (B) inch - 7.0866
Outer Diameter (B) mm - 180
C (inch) - 2.3622
C (mm) - 60
Notes :
BRG - Roller Bearing
223 - 22300 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
