Description
Brand - DODGE
Item Number - 423120 DODGE - BRG22334KC3
Category - USAF 22300K Spherical Roller Bearings
Description - BRG22334KC3
Shaft Size (inch) - 5.9375, 6.0
Housing - 634
Bearing Number - 22334K
Approximate Weight (lbs) - 132

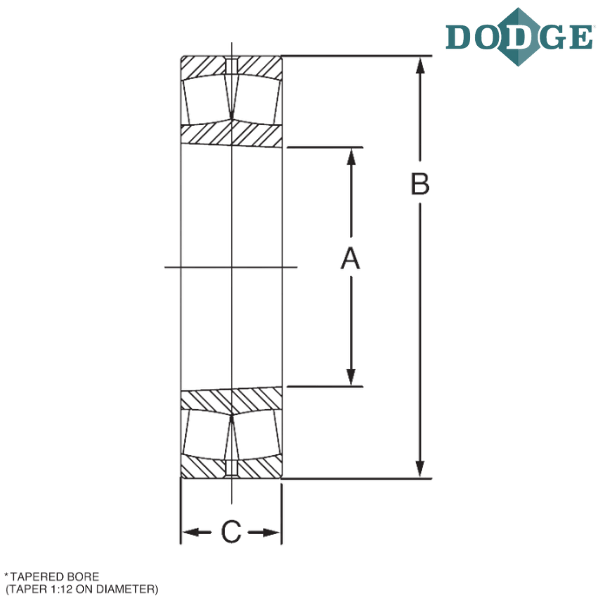

A (inch) - 6.6929
A (mm) - 170
Outer Diameter (B) inch - 14.1732
Outer Diameter (B) mm - 360
C (inch) - 4.7244
C (mm) - 120
Notes :
BRG - Roller Bearing
223 - 22300 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
