Description
Brand - DODGE
Item Number - 423131 DODGE - BRG22317C3
Category - USAF 22300 Spherical Roller Bearings
Description - BRG22317C3
Housing - 317
Bearing Number - 22317
Approximate Weight (lbs) - 15.7

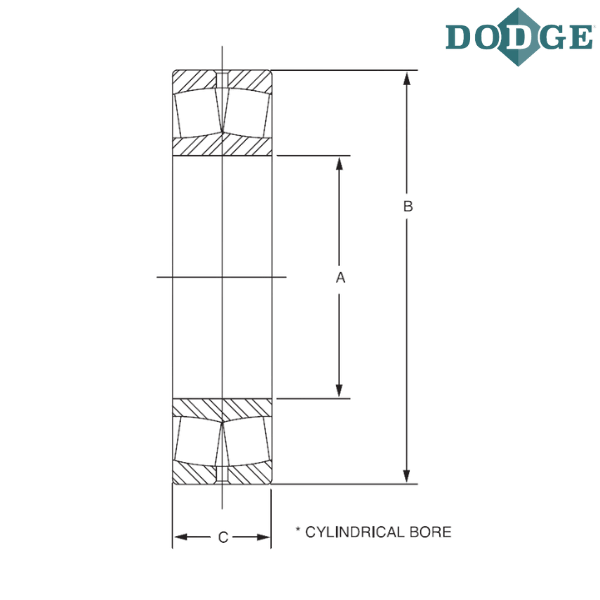

Bore Diameter (A) inch - 3.3465
Bore Diameter (A) mm - 85
Outer Diameter (B) inch - 7.0866
Outer Diameter (B) mm - 180
C (inch) - 2.3622
C (mm) - 60
Notes :
BRG - Roller Bearing
223 - 22300 Series
C3 - Bearing clearance
** Images are for representaion purposes only
