Description
Brand - DODGE
Item Number - 423134 DODGE - BRG22324C3
Category - USAF 22300 Spherical Roller Bearings
Description - BRG22324C3
Housing - 324
Bearing Number - 22324
Approximate Weight (lbs) - 48.3

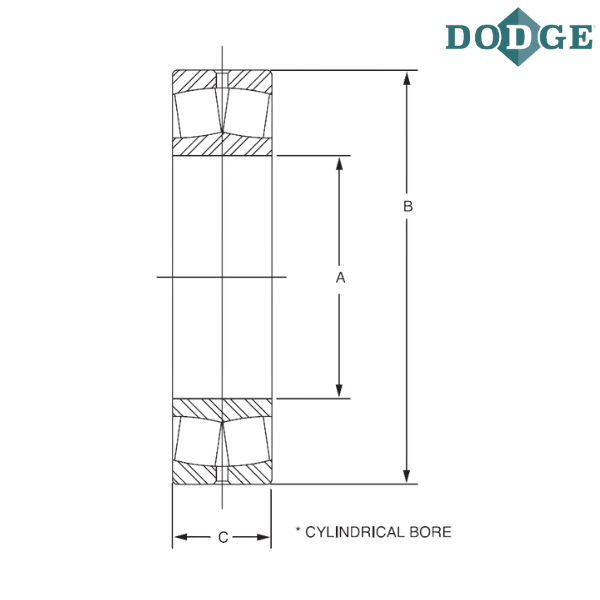

Bore Diameter (A) inch - 4.7244
Bore Diameter (A) mm - 120
Outer Diameter (B) inch - 10.2362
Outer Diameter (B) mm - 260
C (inch) - 3.3858
C (mm) - 86
Notes :
BRG - Roller Bearing
223 - 22300 Series
C3 - Bearing clearance
** Images are for representaion purposes only
