Description
Brand - DODGE
Item Number - 423144 DODGE - BRG22316C3
Category - USAF 22300 Spherical Roller Bearings
Description - BRG22316C3
Housing - 316
Bearing Number - 22316
Approximate Weight (lbs) - 13.1

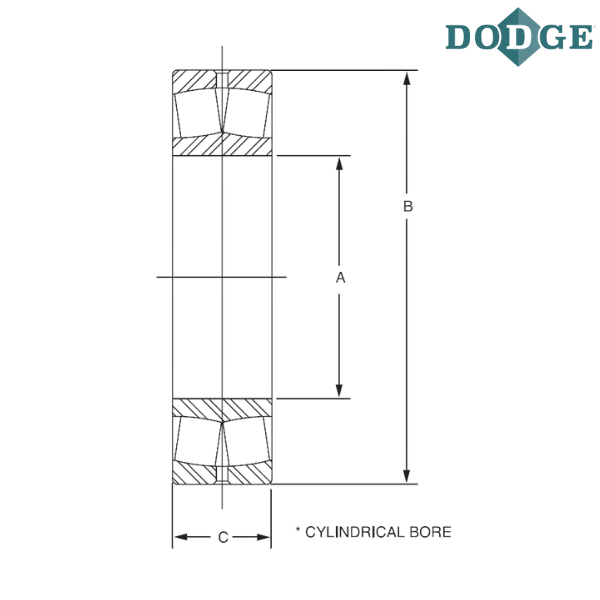

Bore Diameter (A) inch - 3.1496
Bore Diameter (A) mm - 80
Outer Diameter (B) inch - 6.6929
Outer Diameter (B) mm - 170
C (inch) - 2.2835
C (mm) - 58
Notes :
BRG - Roller Bearing
223 - 22300 Series
C3 - Bearing clearance
** Images are for representaion purposes only
