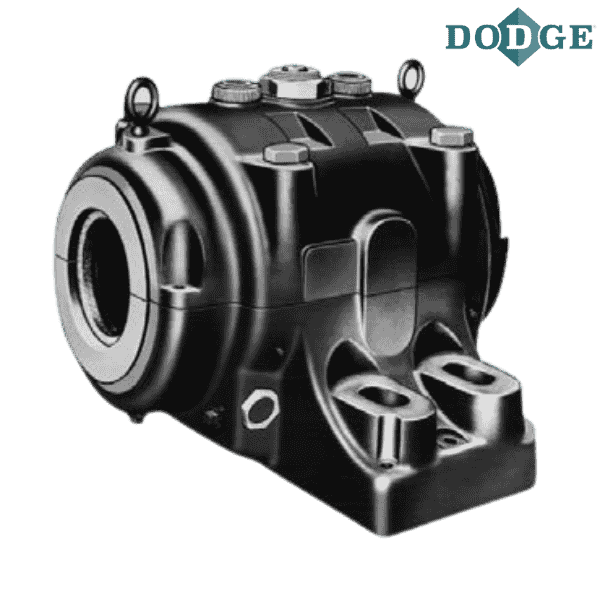

431399 DODGE - 14 STD PLAIN EXP PILLOW BLOCK

Brand - DODGE
Item Number - 431399 DODGE - 14 STD PLAIN EXP PILLOW BLOCK
Category - Plain Sleeveoil Pillow Block (R Series)
Description - 14 STD PLAIN EXP PILLOW BLOCK
Shaft Size (inch) - 14
Weight (lbs) - 3400
SSL Item Number - 430561 DODGE - 14 SSL PLAIN PILLOW BLOCK
Weight of SSL (lbs) - 3000
Split Thrust Collar Item Number * - 431389 DODGE - 14 PLAIN SLV SPLIT THRUST COLLAR
Weight of Split Thrust Collar (lbs) - 75
Auxiliary Seal Kits Item Number ** - 132822 DODGE - 14 SLEEVOIL AUX SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 36
Housing End Cap Kits Item Number - 132567 DODGE - 14 SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 25
Heater / Thermostat Item Number (120 Volt) - 434729 DODGE - 740W - 120V IMMERSION HTR/ T-STAT COMBO
Weight of Heater / Tharmostat (lbs) - 4.0
Circulating Oil Inlet Kits Item Number *** - 430155 DODGE - 5712 CO INLET ADAPTOR KIT
Weight of Circulating Oil Inlet Kit (lbs) - 2
Replacement Liner Assemblies Item Number - 430831 DODGE - 14" PLAIN LINER ASSY
Weight of Replacement Liner Assemblies (lbs) - 1200
A (inch) - 34
Overall Length (B) inch - 46.125
C (inch) - 18
Bolt to Bolt Minimum Distance (D min) inch - 36.5
Bolt to Bolt Maximum Distance (D max) inch - 40.5
E (inch) - 10
F-Bolt Diameter (inch) - 2
G (inch) - 4
H (inch) - 7
Overall Height (J) inch - 35.125
K (inch) - 32.625
L (inch) - 20
Base to Center Height (M) inch - 16
P (inch) - 28.75
U2 (inch) - 1.5
W (inch) - 12.0625

Notes :
STD - Standard Series

* 2 Collars Required To Make A Non-Expansion STL Pillow Blocks
** One required per pillow block end
*** One required per pillow block

**** Images are for representation purposes only
