Description
Brand - DODGE

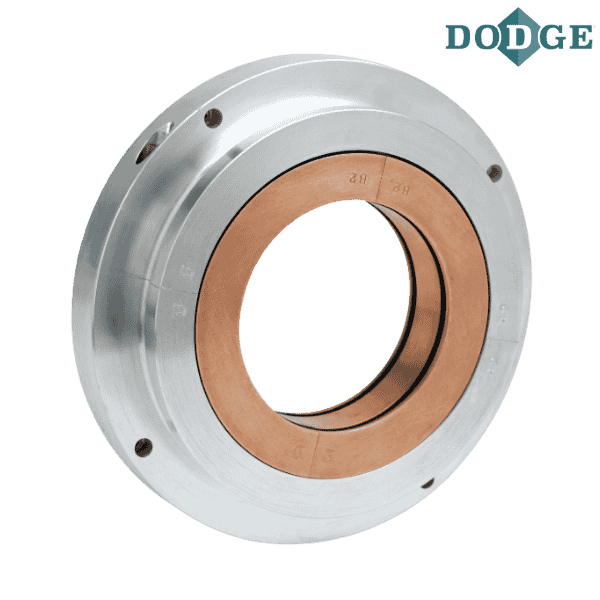

Item Number - 434711 DODGE - 6 SLEEVEOIL BEARING ISOLATOR
Category - Dodge Sleeveoil Bearing Isolator (RTL and R-Series Pillow Blocks)
Description - 6 SLEEVEOIL BEARING ISOLATOR
Shaft Size (inch) - 6

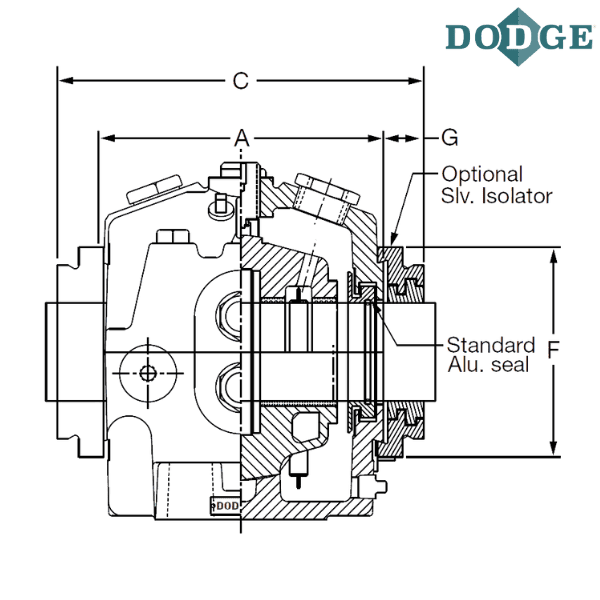

Length through housing bore with standard aluminum seal (A *) inch - 16

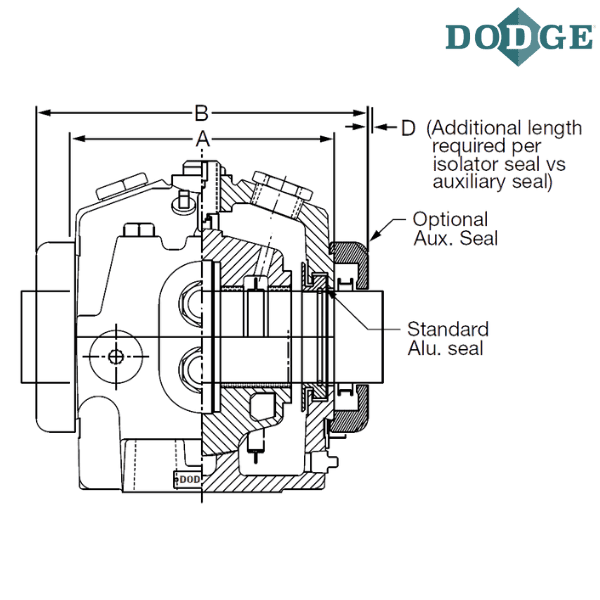

Length through housing bore with optional auxiliary seals (B *) inch - 18.625
Length through housing bore with optional isolator seals (C *) inch - 18.875
Additional length required per isolator seal vs auxiliary seal (D *) inch - 0.125
Additional shaft length required (E *) inch - 0.25
Isolator outside diameter (F *) inch - 11.625
Isolator width from housing end face (G *) inch - 1.4375
* Isolator can also be used with R-Series Pillow Blocks
** Images are for representation purposes only
