Description
Brand - RBC
Item Number - 477-12012 RBC
Category - LW Titanium Bearings

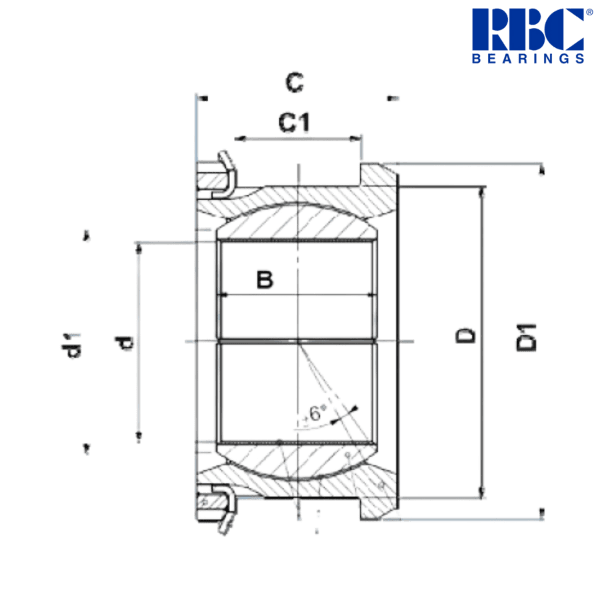

Metric :
Bore Diameter (d) mm - 25.4
Dimension (d1) mm - 30.12
Outer Diameter (D) mm - 41.28
Dimension (D1) mm - 49.21
Width (B) mm - 20.64
Dimension (C) mm - 25.4
Dimension (C1) mm - 14.29
Dynamic Load Rating (N) - 70400
Weight with Titanium (kg) - 0.133
Weight Saving vs. Steel (kg) - 0.103
Imperial :
Bore Diameter (d) inch - 1
Dimension (d1) inch - 1.186
Outer Diameter (D) inch - 1.625
Dimension (D1) inch - 1.938
Width (B) inch - 0.813
Dimension (C) inch - 1
Dimension (C1) inch - 0.563
Dynamic Load Rating (lbf) - 15827
Weight with Titanium (lb) - 0.293
Weight Saving vs. Steel (lb) - 0.227
** Images are for representation purposes only
