Description
Brand - RBC
Item Number - 477-12014 RBC
Category - LW Titanium Bearings
Metric :
Bore Diameter (d) mm - 31.75
Dimension (d1) mm - 36.48
Outer Diameter (D) mm - 50.8
Dimension (D1) mm - 57.15
Width (B) mm - 25.4
Dimension (C) mm - 31.75
Dimension (C1) mm - 20.64
Dynamic Load Rating (N) - 109100
Weight with Titanium (kg) - 0.228
Weight Saving vs. Steel (kg) - 0.176
Imperial :
Bore Diameter (d) inch - 1.25
Dimension (d1) inch - 1.436
Outer Diameter (D) inch - 2
Dimension (D1) inch - 2.25
Width (B) inch - 1
Dimension (C) inch - 1.25
Dimension (C1) inch - 0.813
Dynamic Load Rating (lbf) - 24527
Weight with Titanium (lb) - 0.503
Weight Saving vs. Steel (lb) - 0.388

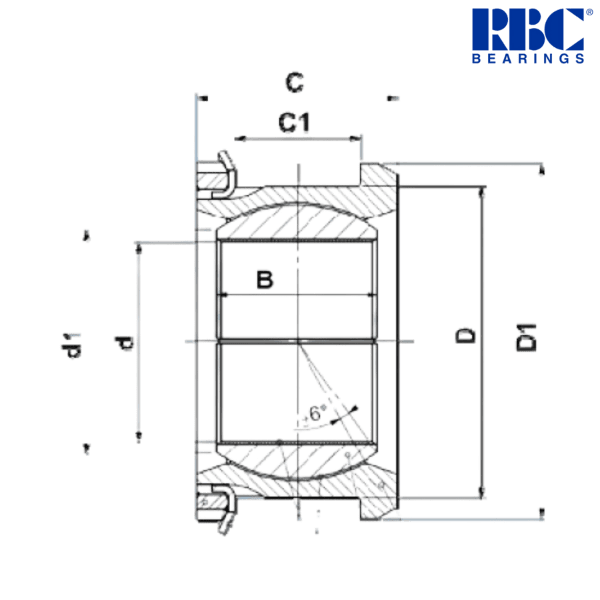

** Images are for representation purposes only
