Description
Brand - RBC
Item Number - 477-12015 RBC
Category - LW Titanium Bearings

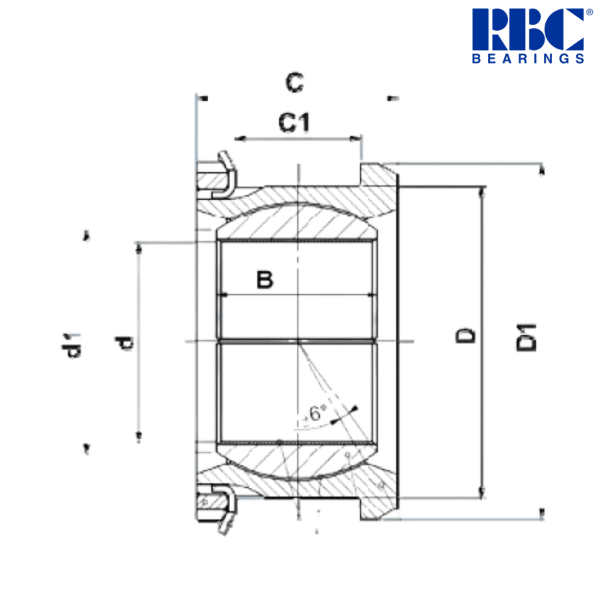

Metric :
Bore Diameter (d) mm - 34.93
Dimension (d1) mm - 40.07
Outer Diameter (D) mm - 55.56
Dimension (D1) mm - 63.5
Width (B) mm - 26.99
Dimension (C) mm - 33.34
Dimension (C1) mm - 22.23
Dynamic Load Rating (N) - 129400
Weight with Titanium (kg) - 0.295
Weight Saving vs. Steel (kg) - 0.228
Imperial :
Bore Diameter (d) inch - 1.375
Dimension (d1) inch - 1.578
Outer Diameter (D) inch - 2.188
Dimension (D1) inch - 2.5
Width (B) inch - 1.063
Dimension (C) inch - 1.313
Dimension (C1) inch - 0.875
Dynamic Load Rating (lbf) - 29090
Weight with Titanium (lb) - 0.65
Weight Saving vs. Steel (lb) - 0.503
** Images are for representation purposes only
