477-12016 RBC

Brand - RBC
Item Number - 477-12016 RBC
Category - LW Titanium Bearings

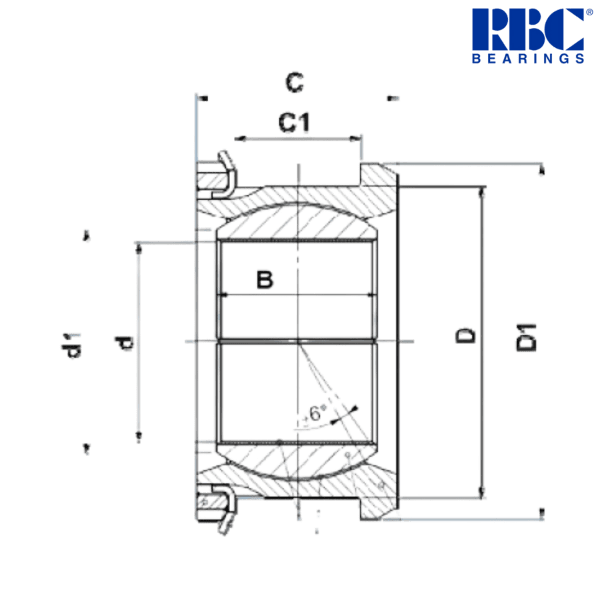

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 38.1 mm
Dimension (d1) - 44.76 mm
Outer Diameter (D) - 60.33 mm
Dimension (D1) - 66.68 mm
Width (B) - 30.16 mm
Dimension (C) - 38.1 mm
Dimension (C1) - 25.4 mm
Dynamic Load Rating - 151500 N
Weight with Titanium - 0.371 kg
Weight Saving vs. Steel - 0.287 kg

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (d) - 1.5 inch
Dimension (d1) - 1.762 inch
Outer Diameter (D) - 2.375 inch
Dimension (D1) - 2.625 inch
Width (B) - 1.188 inch
Dimension (C) - 1.5 inch
Dimension (C1) - 1 inch
Dynamic Load Rating - 34059 lbf
Weight with Titanium - 0.818 lb
Weight Saving vs. Steel - 0.632 lb

♦ ♦ Images are for representation purposes only
