Description
Brand - RBC
Item Number - 477-12017 RBC
Category - LW Titanium Bearings

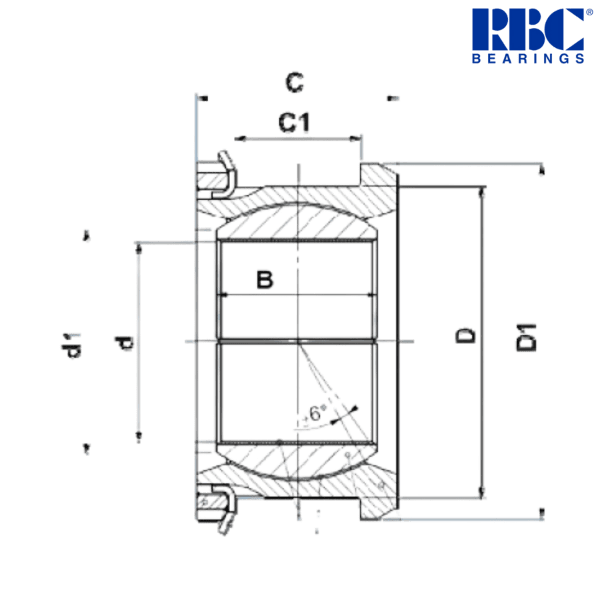

Metric :
Bore Diameter (d) mm - 41.28
Dimension (d1) mm - 48.36
Outer Diameter (D) mm - 65.09
Dimension (D1) mm - 71.44
Width (B) mm - 33.34
Dimension (C) mm - 41.28
Dimension (C1) mm - 28.58
Dynamic Load Rating (N) - 185500
Weight with Titanium (kg) - 0.47
Weight Saving vs. Steel (kg) - 0.363
Imperial :
Bore Diameter (d) inch - 1.625
Dimension (d1) inch - 1.904
Outer Diameter (D) inch - 2.563
Dimension (D1) inch - 2.813
Width (B) inch - 1.313
Dimension (C) inch - 1.625
Dimension (C1) inch - 1.125
Dynamic Load Rating (lbf) - 41702
Weight with Titanium (lb) - 1.036
Weight Saving vs. Steel (lb) - 0.801
** Images are for representation purposes only
