Description
Brand - RBC
Item Number - 477-12018 RBC
Category - LW Titanium Bearings

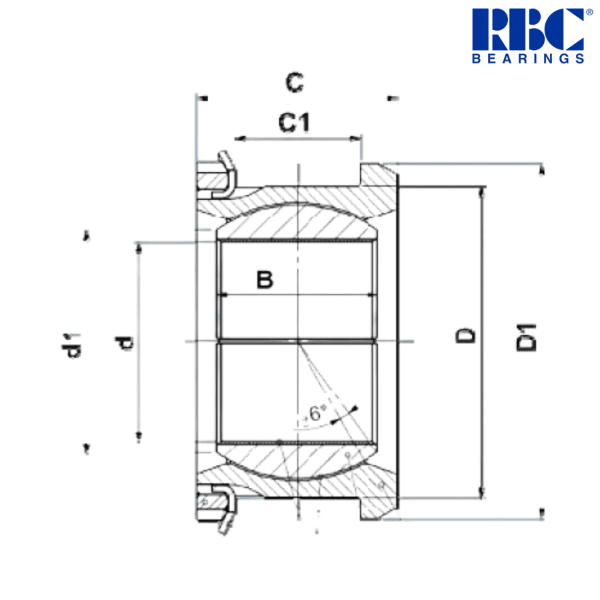

Metric :
Bore Diameter (d) mm - 44.45
Dimension (d1) mm - 50
Outer Diameter (D) mm - 68.26
Dimension (D1) mm - 76.2
Width (B) mm - 36.51
Dimension (C) mm - 46.04
Dimension (C1) mm - 33.34
Dynamic Load Rating (N) - 217200
Weight with Titanium (kg) - 0.554
Weight Saving vs. Steel (kg) - 0.428
Imperial :
Bore Diameter (d) inch - 1.75
Dimension (d1) inch - 1.969
Outer Diameter (D) inch - 2.688
Dimension (D1) inch - 3
Width (B) inch - 1.438
Dimension (C) inch - 1.813
Dimension (C1) inch - 1.313
Dynamic Load Rating (lbf) - 48828
Weight with Titanium (lb) - 1.221
Weight Saving vs. Steel (lb) - 0.944
** Images are for representation purposes only
