Description
Brand - RBC
Item Number - 477-12020 RBC
Category - LW Titanium Bearings

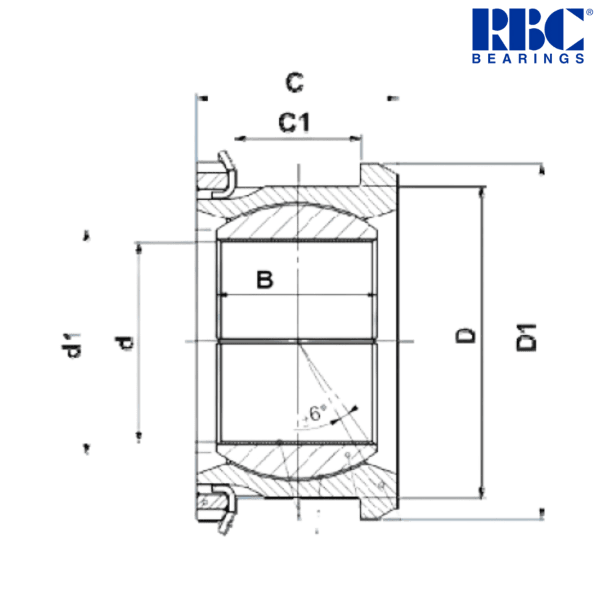

Metric :
Bore Diameter (d) mm - 50.8
Dimension (d1) mm - 58.31
Outer Diameter (D) mm - 79.38
Dimension (D1) mm - 87.31
Width (B) mm - 40.28
Dimension (C) mm - 50.8
Dimension (C1) mm - 36.51
Dynamic Load Rating (N) - 275700
Weight with Titanium (kg) - 0.847
Weight Saving vs. Steel (kg) - 0.655
Imperial :
Bore Diameter (d) inch - 2
Dimension (d1) inch - 2.296
Outer Diameter (D) inch - 3.125
Dimension (D1) inch - 3.438
Width (B) inch - 1.586
Dimension (C) inch - 2
Dimension (C1) inch - 1.438
Dynamic Load Rating (lbf) - 61980
Weight with Titanium (lb) - 1.867
Weight Saving vs. Steel (lb) - 1.443
** Images are for representation purposes only
