543086/543115D TIMKEN

Brand - TIMKEN
Item Number - 543086/543115D TIMKEN
Also Known As - 543086 - 543115D
Category - Double Row Tapered Roller Bearing (TDO Type)
Bore Diameter (d) mm - 219.969
Bore Diameter (d) inch - 8.6602
Outer Diameter (D) mm - 287.338
Outer Diameter (D) inch - 11.3125
Bearing Width across Cones (T) mm - 69.85
Bearing Width across Cones (T) inch - 2.75
Double Outer Ring Width (C) mm - 50.8
Double Outer Ring Width (C) inch - 2
Dynamic Load Rating (C1) N - 416000
Dynamic Load Rating (C1) lbf - 93600
Factor (e) - 0.39
Factor (Y1) - 1.75
Factor (Y2) - 2.61
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 62000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 13900
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 40900
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 9190
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 108000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 24300
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.52

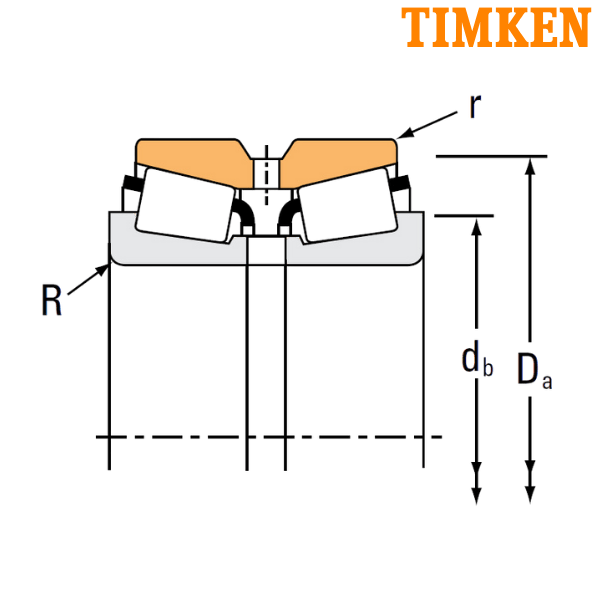

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Backface Backing Diameter (db) mm - 235
Cone Backface Backing Diameter (db) inch - 9.25
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Cup Frontface Backing Diameter (Da) mm - 276
Cup Frontface Backing Diameter (Da) inch - 10.87
Geometry Factor (G1) - 608.5
Geometry Factor (G2) - 232.3
Geometry Factor (Cg) - 0.1135
Bearing Weight (kg) - 10.71
Bearing Weight (lbs) - 23.61
Inner Part Number - 543086
Outer Part Number - 543115D
TDO - Single Piece (Double) Outer Ring and Two Single Inner Rings

** Images are for representation purposes only
