567-S/563D TIMKEN

Brand - TIMKEN
Item Number - 567-S/563D TIMKEN
Also Known As - 567-S - 563D
Category - Double Row Tapered Roller Bearing (TDO Type)
Bore Diameter (d) mm - 71.437
Bore Diameter (d) inch - 2.8125
Outer Diameter (D) mm - 127
Outer Diameter (D) inch - 5
Bearing Width across Cones (T) mm - 80.962
Bearing Width across Cones (T) inch - 3.1875
Double Outer Ring Width (C) mm - 65.088
Double Outer Ring Width (C) inch - 2.5625
Dynamic Load Rating (C1) N - 342000
Dynamic Load Rating (C1) lbf - 76900
Factor (e) - 0.36
Factor (Y1) - 1.86
Factor (Y2) - 2.76
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 50900
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 11400
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 31700
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 7130
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 88600
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 19900
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.61

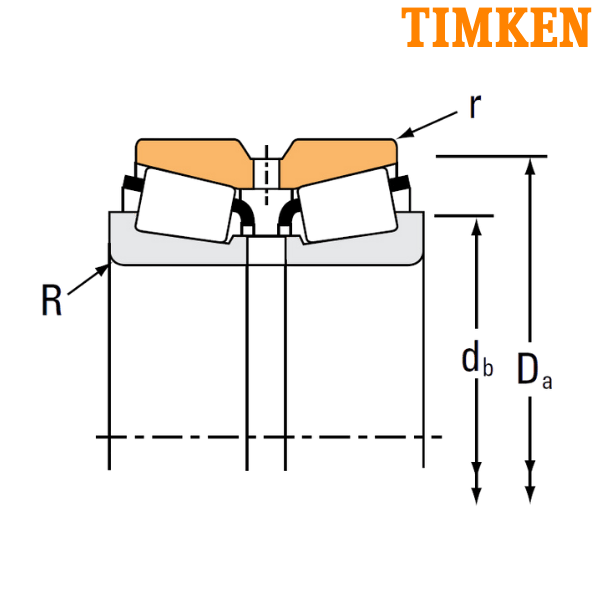

Maximum Shaft Fillet Radius (R) mm - 6.4
Maximum Shaft Fillet Radius (R) inch - 0.25
Cone Backface Backing Diameter (db) mm - 92
Cone Backface Backing Diameter (db) inch - 3.62
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 119
Cup Frontface Backing Diameter (Da) inch - 4.69
Geometry Factor (G1) - 101.3
Geometry Factor (G2) - 24
Geometry Factor (Cg) - 0.1167
Bearing Weight (kg) - 3.96
Bearing Weight (lbs) - 8.75
Inner Part Number - 567-S
Outer Part Number - 563D
TDO - Single Piece (Double) Outer Ring and Two Single Inner Rings

** Images are for representation purposes only
