598/592D TIMKEN

Brand - TIMKEN
Item Number - 598/592D TIMKEN
Also Known As - 598 - 592D
Category - Double Row Tapered Roller Bearing (TDO Type)
Bore Diameter (d) mm - 92.075
Bore Diameter (d) inch - 3.625
Outer Diameter (D) mm - 152.4
Outer Diameter (D) inch - 6
Bearing Width across Cones (T) mm - 82.55
Bearing Width across Cones (T) inch - 3.25
Double Outer Ring Width (C) mm - 63.5
Double Outer Ring Width (C) inch - 2.5
Dynamic Load Rating (C1) N - 376000
Dynamic Load Rating (C1) lbf - 84600
Factor (e) - 0.44
Factor (Y1) - 1.53
Factor (Y2) - 2.27
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 56000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 12600
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 42400
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 9530
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 97500
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 21900
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.32

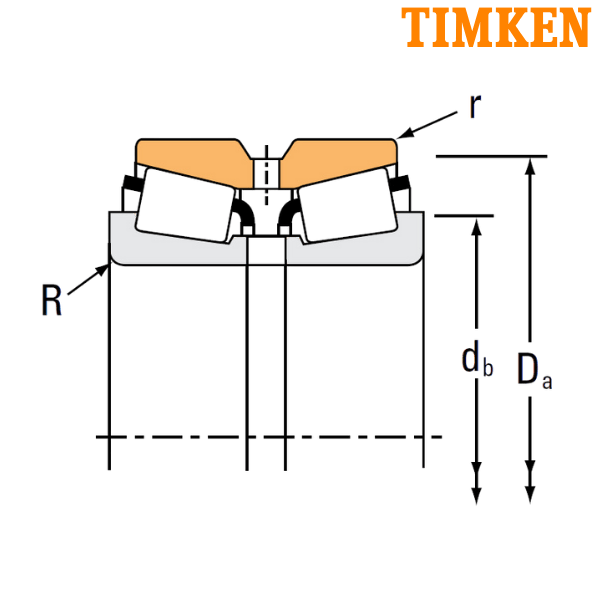

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Backface Backing Diameter (db) mm - 107
Cone Backface Backing Diameter (db) inch - 4.21
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Cup Frontface Backing Diameter (Da) mm - 144
Cup Frontface Backing Diameter (Da) inch - 5.67
Geometry Factor (G1) - 151.4
Geometry Factor (G2) - 38.3
Geometry Factor (Cg) - 0.1416
Bearing Weight (kg) - 5.5
Bearing Weight (lbs) - 12.11
Inner Part Number - 598
Outer Part Number - 592D
TDO - Single Piece (Double) Outer Ring and Two Single Inner Rings

** Images are for representation purposes only
