Description
Brand - FAG
Item Number - 6001-C-2HRS FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 12
Outer Diameter (D) mm - 28
Width (B) mm - 8
Basic Dynamic Load Rating (Cr) N - 5900
Basic Static Load Rating (C0r) N - 2370
Fatigue Limit Load (Cur) N - 164
Limiting Speed (nG) min–1 - 24900
Calculation Factor (f0) - 13.1
Weight (m) kg - 0.02
Minimum Chamfer Dimension (r min) mm - 0.3
Caliber Diameter Outer Ring (D2) mm - 25.1
Caliber Diameter Inner Ring (d2) mm - 15.69

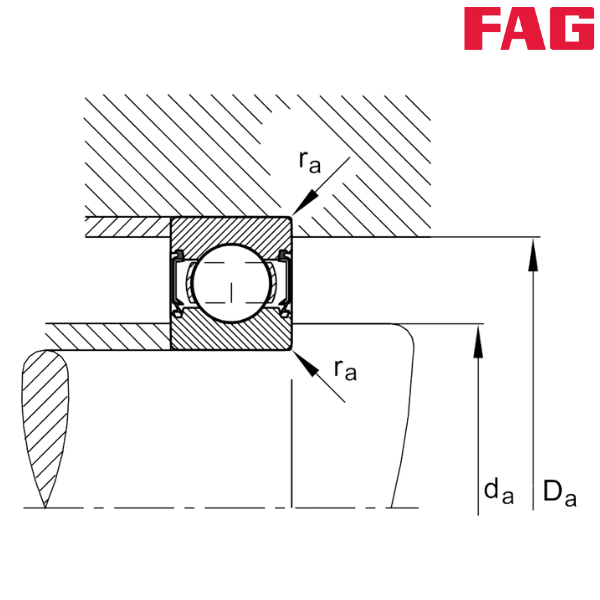

Minimum Diameter Shaft Shoulder (da) mm - 14
Maximum Diameter of Housing Shoulder (Da) mm - 26
Maximum Fillet Radius (ra) mm - 0.3
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
C - Deep Groove Ball Bearing, Generation C
2HRS - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
