Description
Brand - FAG
Item Number - 6003-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 17
Outer Diameter (D) mm - 35
Width (B) mm - 10
Basic Dynamic Load Rating (Cr) N - 6400
Basic Static Load Rating (C0r) N - 3250
Fatigue Limit Load (Cur) N - 162
Limiting Speed (nG) min–1 - 26000
Speed Rating (nϑr) min–1 - 20300
Calculation Factor (f0) - 14.3
Weight (m) kg - 0.037
Minimum Chamfer Dimension (r min) mm - 0.3
Caliber Diameter Outer Ring (D2) mm - 30.81
Shoulder Diameter Inner Ring (d1) mm - 22.65

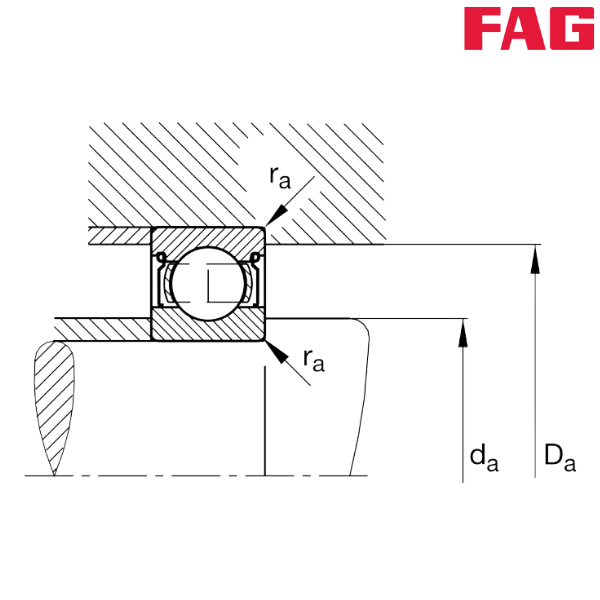

Minimum Diameter Shaft Shoulder (da) mm - 19
Maximum Diameter of Housing Shoulder (Da) mm - 33
Maximum Fillet Radius (ra) mm - 0.3
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
** Images are for representation purposes only
