6005-C FAG


Download Data Sheet
Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Description

Brand - FAG
Item Number - 6005-C FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 25
Outer Diameter (D) mm - 47
Width (B) mm - 12
Basic Dynamic Load Rating (Cr) N - 12600
Basic Static Load Rating (C0r) N - 6500
Fatigue Limit Load (Cur) N - 420
Limiting Speed (nG) min–1 - 23700
Speed Rating (nϑr) min–1 - 16400
Calculation Factor (f0) - 14.3
Weight (m) kg - 0.07
Minimum Chamfer Dimension (r min) mm - 0.6
Caliber Diameter Outer Ring (D2) mm - 42.66
Caliber Diameter Inner Ring (d2) mm - 29.93

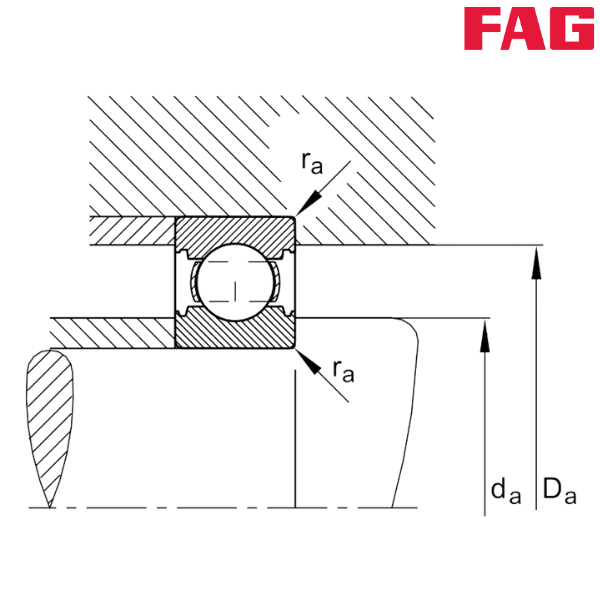

Minimum Diameter Shaft Shoulder (da) mm - 28.2
Maximum Diameter of Housing Shoulder (Da) mm - 43.8
Maximum Fillet Radius (ra) mm - 0.6

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
C - Deep Groove Ball Bearing, Generation C

** Images are for representation purposes only
