Description
Brand - FAG
Item Number - 6007-C-2HRS FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 35
Outer Diameter (D) mm - 62
Width (B) mm - 14
Basic Dynamic Load Rating (Cr) N - 17500
Basic Static Load Rating (C0r) N - 10300
Fatigue Limit Load (Cur) N - 620
Limiting Speed (nG) min–1 - 9300
Calculation Factor (f0) - 14.9
Weight (m) kg - 0.148
Minimum Chamfer Dimension (r min) mm - 1
Caliber Diameter Outer Ring (D2) mm - 56.32
Caliber Diameter Inner Ring (d2) mm - 41.31

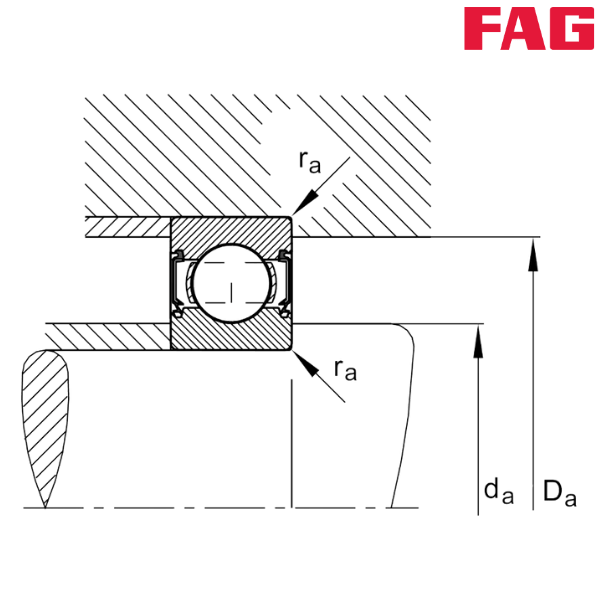

Minimum Diameter Shaft Shoulder (da) mm - 39.6
Maximum Diameter of Housing Shoulder (Da) mm - 57.4
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
C - Deep Groove Ball Bearing, Generation C
2HRS - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
