Description
Brand - FAG
Item Number - 6008 FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 40
Outer Diameter (D) mm - 68
Width (B) mm - 15
Basic Dynamic Load Rating (Cr) N - 17800
Basic Static Load Rating (C0r) N - 11500
Fatigue Limit Load (Cur) N - 600
Limiting Speed (nG) min–1 - 14600
Speed Rating (nϑr) min–1 - 10600
Calculation Factor (f0) - 15.2
Weight (m) kg - 0.192
Minimum Chamfer Dimension (r min) mm - 1
Shoulder Diameter Outer Ring (D1) mm - 59.06
Shoulder Diameter Inner Ring (d1) mm - 49.3

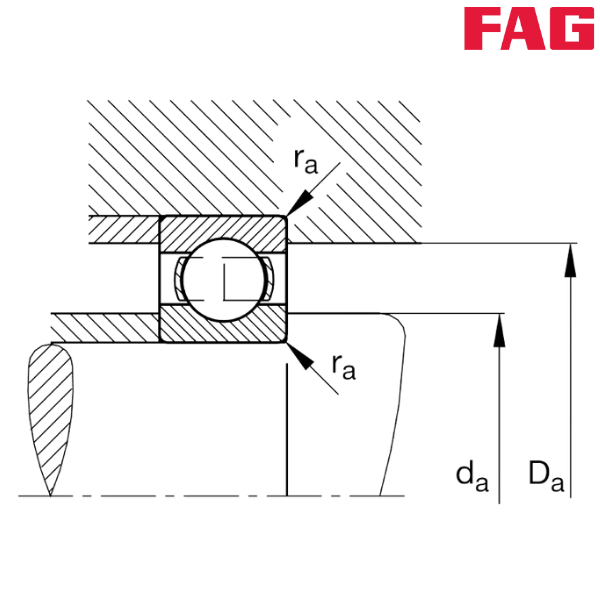

Minimum Diameter Shaft Shoulder (da) mm - 44.6
Maximum Diameter of Housing Shoulder (Da) mm - 63.4
Maximum Fillet Radius (ra) mm - 1
** Images are for representation purposes only
