Description
Brand - FAG
Item Number - 6011 FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 55
Outer Diameter (D) mm - 90
Width (B) mm - 18
Basic Dynamic Load Rating (Cr) N - 30000
Basic Static Load Rating (C0r) N - 21200
Fatigue Limit Load (Cur) N - 1150
Limiting Speed (nG) min–1 - 10700
Speed Rating (nϑr) min–1 - 8300
Calculation Factor (f0) - 15.3
Weight (m) kg - 0.397
Minimum Chamfer Dimension (r min) mm - 1.1

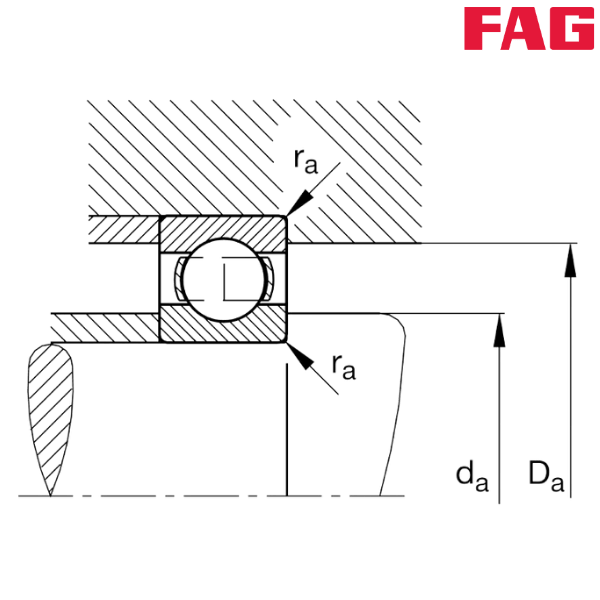

Shoulder Diameter Outer Ring (D1) mm - 78.86
Shoulder Diameter Inner Ring (d1) mm - 66.2
Minimum Diameter Shaft Shoulder (da) mm - 61
Maximum Diameter of Housing Shoulder (Da) mm - 84
Maximum Fillet Radius (ra) mm - 1
** Images are for representation purposes only
