Description
Brand - McMASTER-CARR

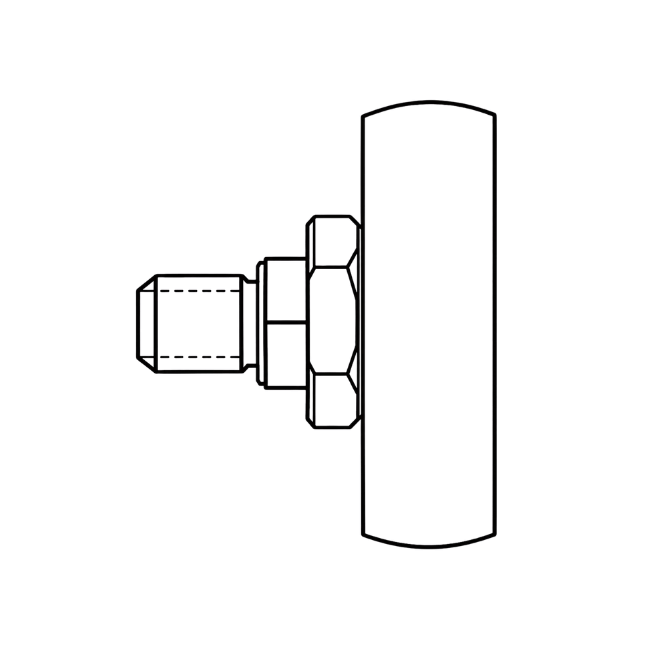

Item Number - 60135K102 McMASTER-CARR
Category - Light Duty Track Rollers and Guide Rails (Nylon Plastic Track Rollers with Adjustable Shoulder)
Imperial :
For Rail Width (inch) - 1.02
Dynamic Load Capacity (lbs) - 10
Roller Diameter (inch) - 0.77
Roller Width (inch) - 0.31
Hex Width (inch) - 0.47
Shoulder Length (inch) - 0.13
Height Adjustment Capability (inch) - 0.033
Stud Length (inch) - 0.23
Thread Length (inch) - 0.23
Maximum Temperature (°F) - 155°
Metric :
For Rail Width (mm) - 25.908
Roller Diameter (mm) - 19.558
Roller Width (mm) - 7.874
Hex Width (mm) - 11.938
Shoulder Length (mm) - 3.302
Height Adjustment Capability (mm) - 0.8382
Stud Diameter (mm) - 6
Stud Length (mm) - 5.842
Thread Size (mm) - M6
Pitch Diameter of Thread (mm) - 1
Thread Length (mm) - 5.842
** Images are for representation purposes only
