Description
Brand - McMASTER-CARR
Item Number - 60135K103 McMASTER-CARR

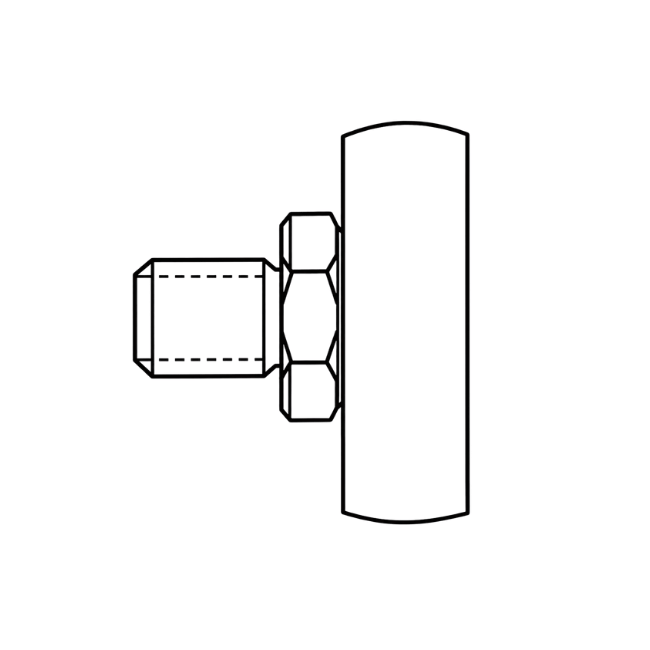

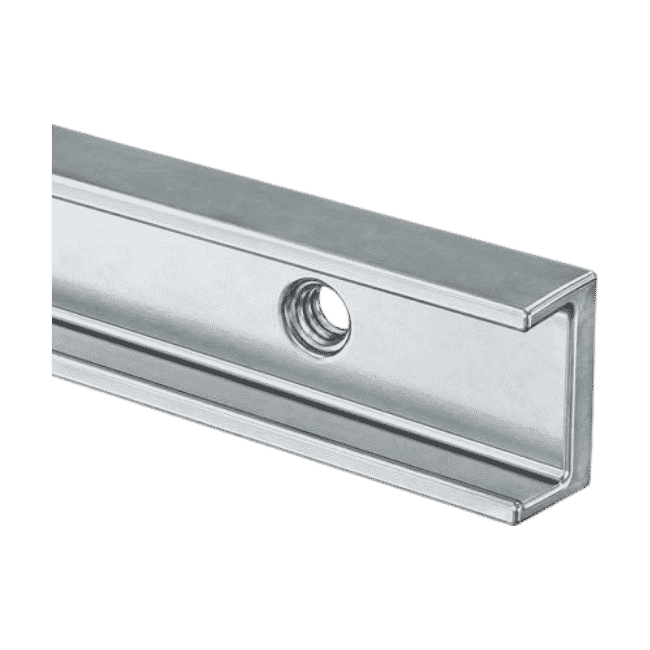

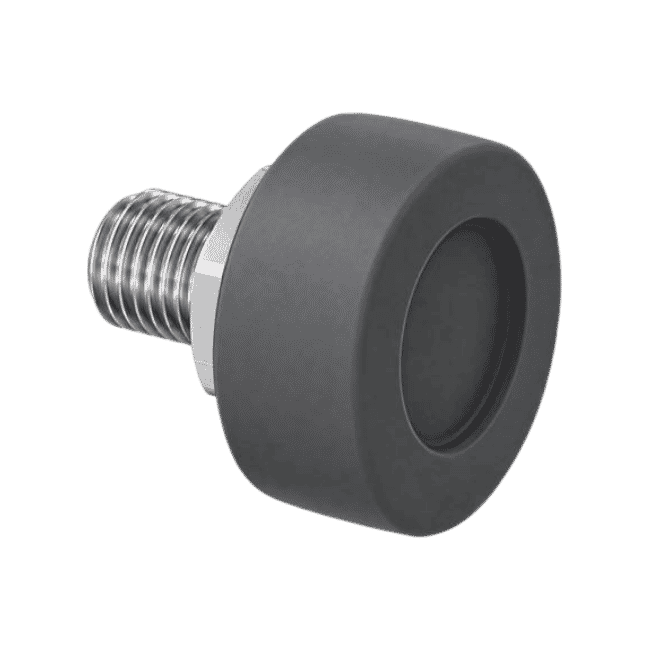

Category - Light Duty Track Rollers and Guide Rails (Nylon Plastic Track Rollers with Standard Shoulder)
Imperial :
For Rail Width (inch) - 1.58
Dynamic Load Capacity (lbs) - 15
Roller Diameter (inch) - 1.21
Roller Width (inch) - 0.44
Hex Width (inch) - 0.55
Shoulder Length (inch) - 0.16
Stud Length (inch) - 0.45
Thread Length (inch) - 0.45
Maximum Temperature (°F) - 155°
Metric :
For Rail Width (mm) - 40.132
Roller Diameter (mm) - 30.734
Roller Width (mm) - 11.176
Hex Width (mm) - 13.97
Shoulder Length (mm) - 4.064
Stud Diameter (mm) - 10
Stud Length (mm) - 11.43
Thread Size (mm) - M10
Pitch Diameter of Thread (mm) - 1.5
Thread Length (mm) - 11.43
** Images are for representation purposes only
