Description
Brand - FAG
Item Number - 6036-M FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 180
Outer Diameter (D) mm - 280
Width (B) mm - 46
Basic Dynamic Load Rating (Cr) N - 201000
Basic Static Load Rating (C0r) N - 199000
Fatigue Limit Load (Cur) N - 8400
Limiting Speed (nG) min–1 - 4050
Speed Rating (nϑr) min–1 - 3300
Calculation Factor (f0) - 15.6
Weight (m) kg - 10.6

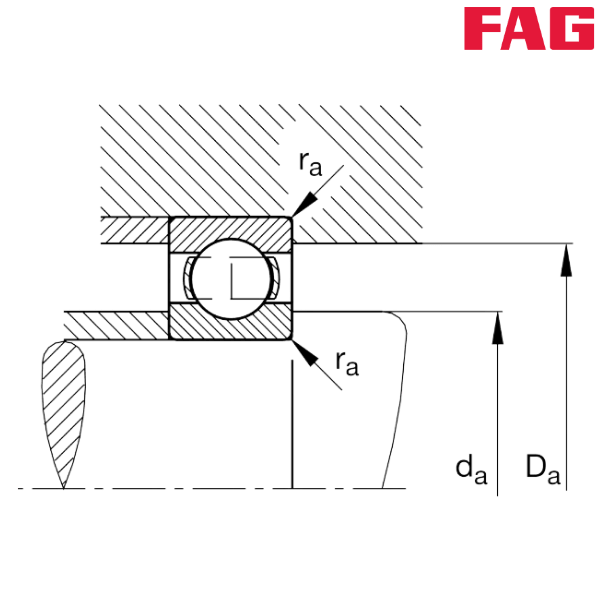

Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Outer Ring (D1) mm - 249.25
Shoulder Diameter Inner Ring (d1) mm - 211.8
Minimum Diameter Shaft Shoulder (da) mm - 190.2
Maximum Diameter of Housing Shoulder (Da) mm - 269.8
Maximum Fillet Radius (ra) mm - 2.1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
M - Solid Brass Cage, Ball-Guided
