Description
Brand - FAG
Item Number - 61801-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 12
Outer Diameter (D) mm - 21
Width (B) mm - 5
Basic Dynamic Load Rating (Cr) N - 1920
Basic Static Load Rating (C0r) N - 1040
Fatigue Limit Load (Cur) N - 47.5
Limiting Speed (nG) min–1 - 42500
Speed Rating (nϑr) min–1 - 23500
Calculation Factor (f0) - 15.3
Weight (m) kg - 0.006
Minimum Chamfer Dimension (r min) mm - 0.3
Caliber Diameter Outer Ring (D2) mm - 19.2
Caliber Diameter Inner Ring (d2) mm - 13.8

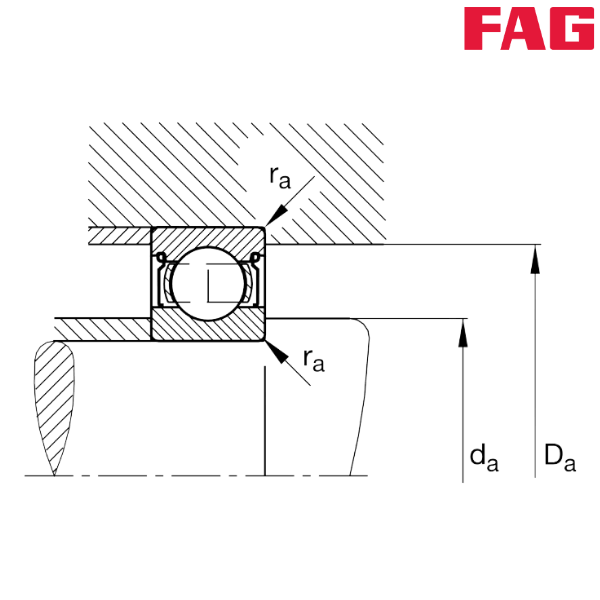

Minimum Diameter Shaft Shoulder (da) mm - 14
Maximum Diameter of Housing Shoulder (Da) mm - 19
Maximum Fillet Radius (ra) mm - 0.3
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
** Images are for representation purposes only
