Description
Brand - FAG
Item Number - 61803-2RSR FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 17
Outer Diameter (D) mm - 26
Width (B) mm - 5
Basic Dynamic Load Rating (Cr) N - 2230
Basic Static Load Rating (C0r) N - 1460
Fatigue Limit Load (Cur) N - 67
Limiting Speed (nG) min–1 - 13500
Calculation Factor (f0) - 16.1
Weight (m) kg - 0.008
Minimum Chamfer Dimension (r min) mm - 0.3
Caliber Diameter Outer Ring (D2) mm - 24.2
Caliber Diameter Inner Ring (d2) mm - 18.8

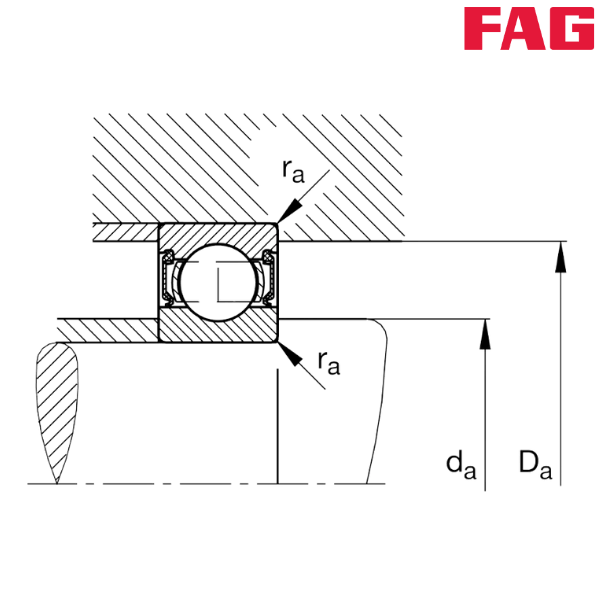

Minimum Diameter Shaft Shoulder (da) mm - 19
Maximum Diameter of Housing Shoulder (Da) mm - 24
Maximum Fillet Radius (ra) mm - 0.3
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2RSR - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
