Description
Brand - FAG
Item Number - 61804-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 20
Outer Diameter (D) mm - 32
Width (B) mm - 7
Basic Dynamic Load Rating (Cr) N - 4020
Basic Static Load Rating (C0r) N - 2460
Fatigue Limit Load (Cur) N - 111
Limiting Speed (nG) min–1 - 28500
Speed Rating (nϑr) min–1 - 17600
Calculation Factor (f0) - 15.4
Minimum Chamfer Dimension (r min) mm - 0.3
Caliber Diameter Outer Ring (D2) mm - 29.5
Caliber Diameter Inner Ring (d2) mm - 22.6

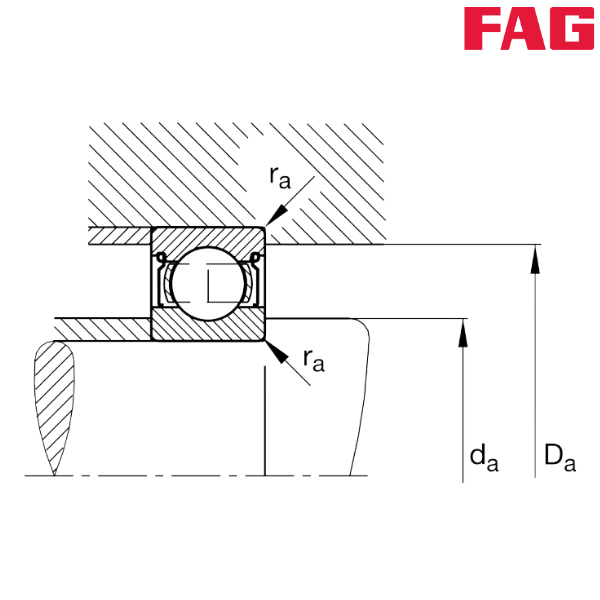

Minimum Diameter Shaft Shoulder (da) mm - 22
Maximum Diameter of Housing Shoulder (Da) mm - 30
Maximum Fillet Radius (ra) mm - 0.3
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
** Images are for representation purposes only
