Description
Brand - FAG
Item Number - 61810-2RZ-Y FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 50
Outer Diameter (D) mm - 65
Width (B) mm - 7
Basic Dynamic Load Rating (Cr) N - 7200
Basic Static Load Rating (C0r) N - 6300
Fatigue Limit Load (Cur) N - 440
Limiting Speed (nG) min–1 - 12900
Speed Rating (nϑr) min–1 - 6400
Calculation Factor (f0) - 16
Weight (m) kg - 0.052

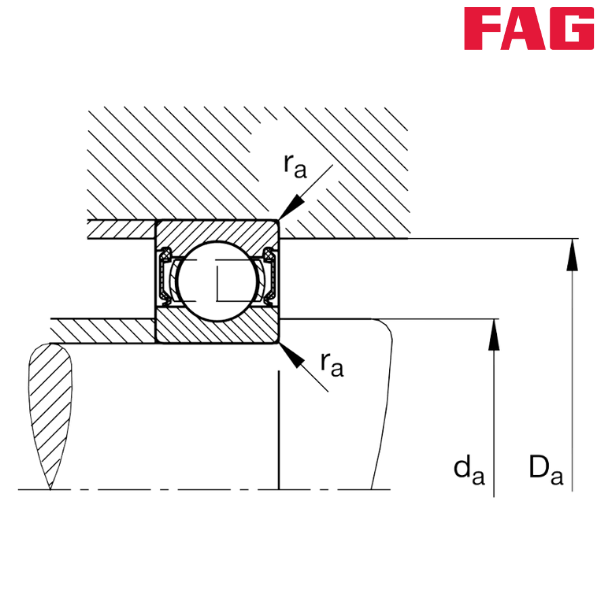

Minimum Chamfer Dimension (r min) mm - 0.3
Caliber Diameter Outer Ring (D2) mm - 61.84
Shoulder Diameter Inner Ring (d1) mm - 55.1
Minimum Diameter Shaft Shoulder (da) mm - 52
Maximum Diameter of Housing Shoulder (Da) mm - 63
Maximum Fillet Radius (ra) mm - 0.3
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
Y - Sheet Brass Cage
2RZ - Non-Contact Seal on Both Sides (Rubberised Gap Seal)
** Images are for representation purposes only
