Description
Brand - FAG
Item Number - 61811-2RSR-Y FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 55
Outer Diameter (D) mm - 72
Width (B) mm - 9
Basic Dynamic Load Rating (Cr) N - 9600
Basic Static Load Rating (C0r) N - 8500
Fatigue Limit Load (Cur) N - 520
Limiting Speed (nG) min–1 - 4400
Calculation Factor (f0) - 16.3
Weight (m) kg - 0.084
Minimum Chamfer Dimension (r min) mm - 0.3
Caliber Diameter Outer Ring (D2) mm - 68.6
Shoulder Diameter Inner Ring (d1) mm - 60.6

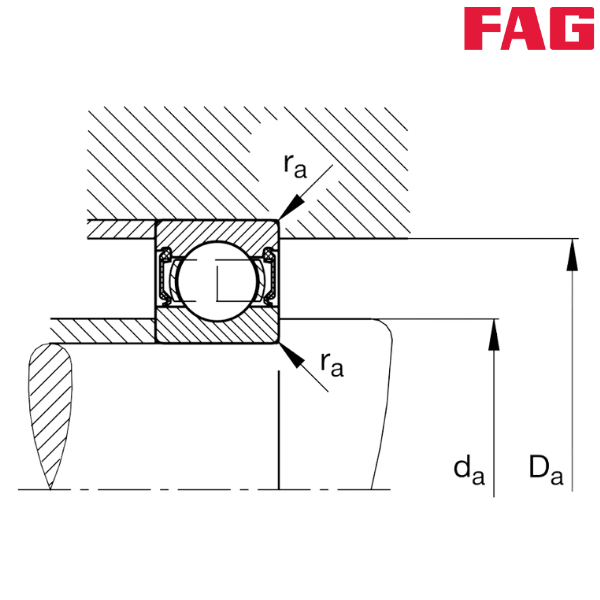

Minimum Diameter Shaft Shoulder (da) mm - 57
Maximum Diameter of Housing Shoulder (Da) mm - 70
Maximum Fillet Radius (ra) mm - 0.3
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
Y - Sheet Brass Cage
2RSR - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
